BNO055LiPoBoard.v03a

by PeskyProducts.

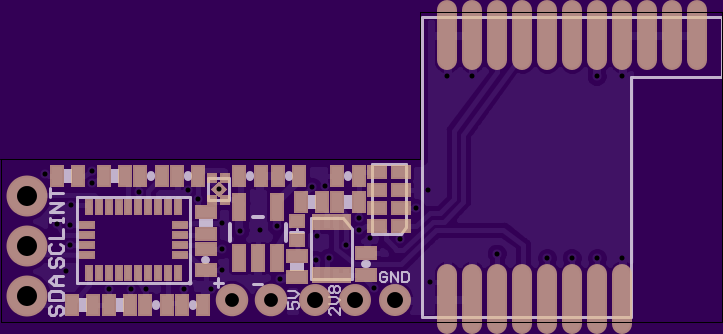

Top

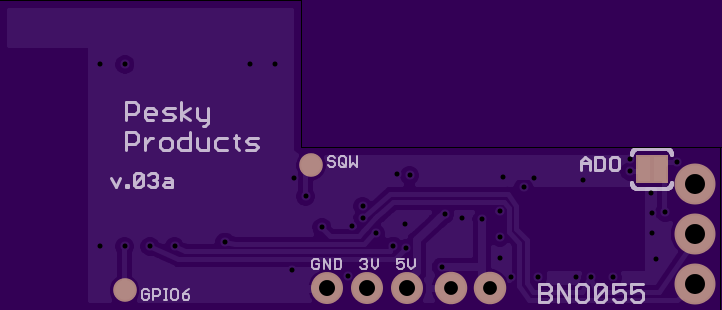

Bottom

4 layer board of 1.44x0.62 inches (36.68x15.75 mm).
Shared on March 3rd, 2016 02:44.

Minimized board width.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Dragonfly.v03

by PeskyProducts.

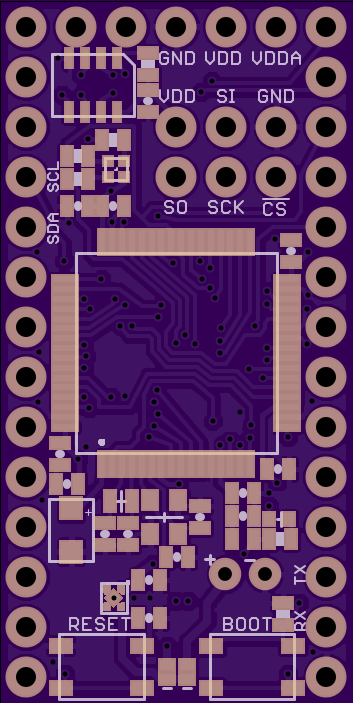

Top

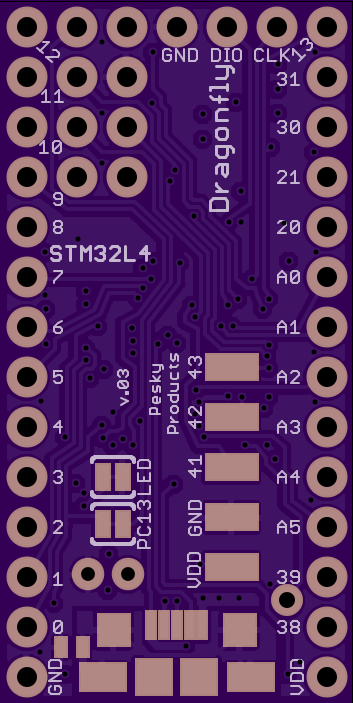

Bottom

4 layer board of 0.71x1.41 inches (17.93x35.71 mm).
Shared on February 26th, 2016 22:34.

Replaced 32 Mbit Micron with 128 Mbit Macronix QSPI flash memory, added RTC_OUT port.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

BNO055NanoBoard.v01a

by PeskyProducts.
Top
Bottom

2 layer board of 0.41x0.41 inches (10.31x10.31 mm).
Shared on February 26th, 2016 04:19.

Reduced passive footprint size, improved routing.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Dragonfly.v02c

by PeskyProducts.

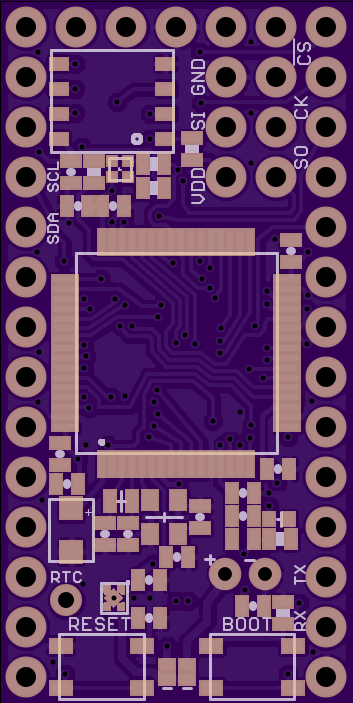

Top

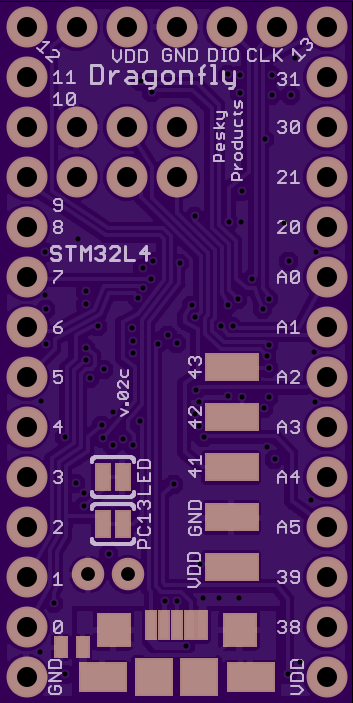

Bottom

4 layer board of 0.71x1.41 inches (17.93x35.71 mm).
Shared on February 23rd, 2016 01:31.

Fixed minor trace error, simplified Reset and Boot circuits, added solder jumper for connection of PC13 to Boot button and changed silkscreen labels to coincide with pin map.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

MX3AClone.v06

by PeskyProducts.
Top
Bottom

4 layer board of 0.40x0.40 inches (10.16x10.16 mm).
Shared on February 16th, 2016 05:17.

Replaced Ta capacitor with 1206 ceramic capacitor to prevent brownout when driving high-current motors. Thickened power traces to 16 mils.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
