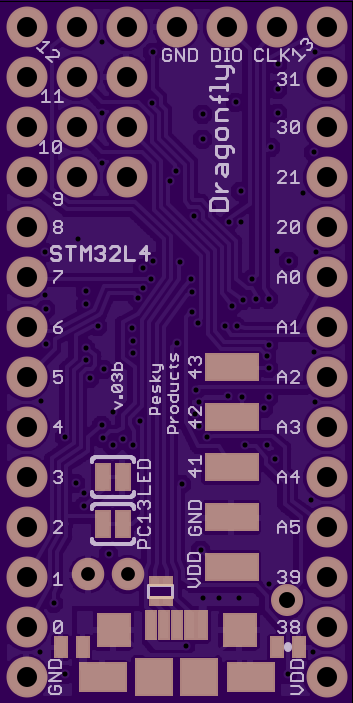

Dragonfly.v03b

by

4 layer board of 0.71x1.41 inches (17.93x35.71 mm).
Shared on March 23rd, 2016 08:38.

Added 22 Ohm resistor array for USB D+/D- lines.

Copy this HTML into your page to embed a link to order this shared project

MPU9250+BME280Micro.v02

by

4 layer board of 0.48x0.25 inches (12.22x6.35 mm).
Shared on March 23rd, 2016 08:38.

Switched BME280 and MPU9250 position to put MPU9250 more in center of the Dragonfly board.

Copy this HTML into your page to embed a link to order this shared project

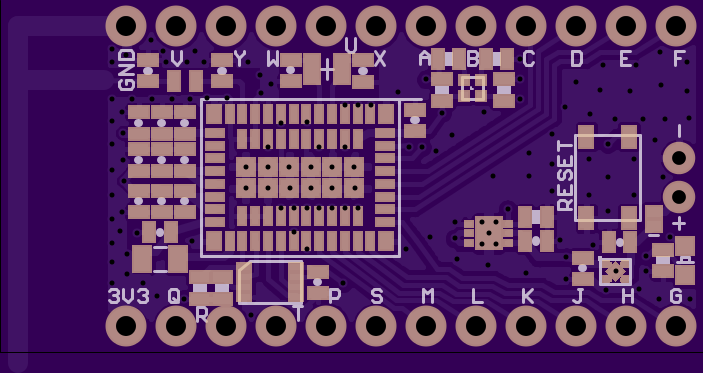

by

4 layer board of 1.41x0.71 inches (35.71x17.91 mm).
Shared on March 20th, 2016 18:42.

Added power port near I2C ports.

Copy this HTML into your page to embed a link to order this shared project

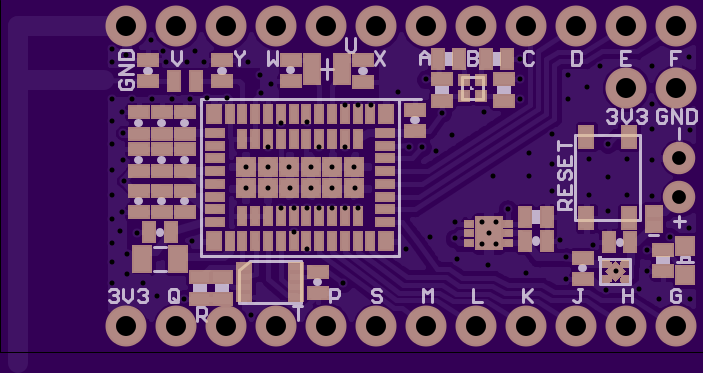

by

4 layer board of 1.41x0.71 inches (35.71x17.91 mm).
Shared on March 17th, 2016 04:50.

Added reverse voltage protection diode to VBAT.

Copy this HTML into your page to embed a link to order this shared project

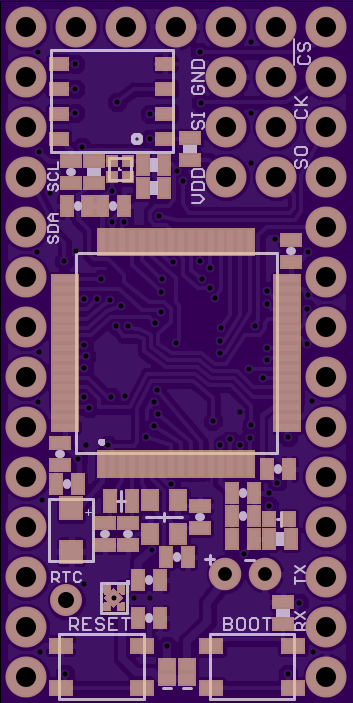

by

4 layer board of 0.71x1.41 inches (17.93x35.71 mm).
Shared on March 9th, 2016 02:50.

Ultra-low-power STM32L476RE breakout board with 128 Mbit Macronix MX25L12835F QSPI NOR flash memory. Moved cap to back.
