DIY-Audio (Vers. A4) for OSSC (v1.3)
by
borti4938.
2
layer board of
1.18x1.05
inches
(29.85x26.75
mm).
Shared on
September 25th, 2016 19:45.
Version A4: Now with a pad for pin 5 (MCLK).
Please use 0.8mm substrate thickness. More information about this PCB can be found here: Link to GitHub
DIY-Audio (Vers. A4a) for OSSC (v1.5)
by
borti4938.
2
layer board of
1.18x0.99
inches
(29.85x25.15
mm).
Shared on
September 25th, 2016 19:45.
Version A4: Now with a pad for IT6613E pin 5 (MCLK); this pin has to be lifted before connected.
Please use 0.8mm substrate thickness. More information about this PCB can be found here: Link to GitHub
DIY-Audio (Vers. A4b) for OSSC (v1.5)
by
borti4938.
2
layer board of
1.18x0.68
inches
(29.85x17.30
mm).
Shared on
September 25th, 2016 19:45.
Version A4: Now with a pad for IT6613E pin 5 (MCLK); this pin has to be lifted before connected.
‘b’-Version has pads for GND and audio (in) allowing installation with wires to the SCART jack instead of the ‘forks’ for attaching the PCB directly to it.
Thanks to Kel for this modification.
Please use 0.8mm substrate thickness. More information about this PCB can be found here: Link to GitHub

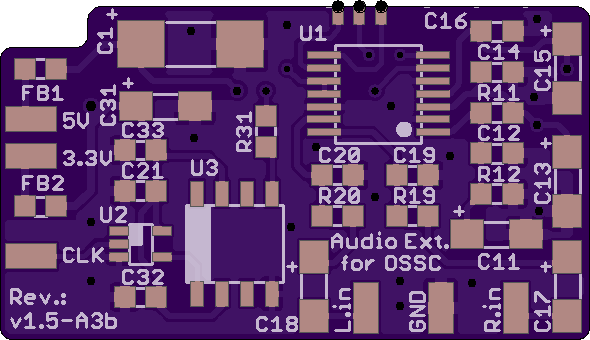

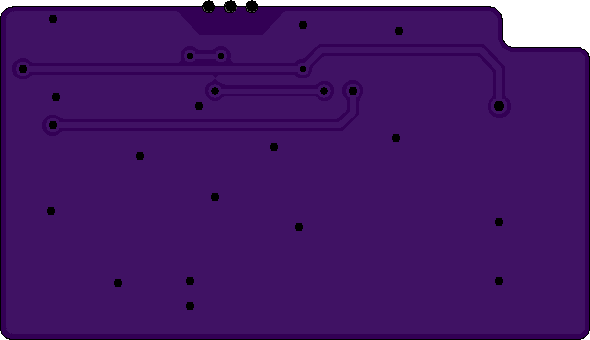

DIY-Audio (Vers. A3b) for OSSC (v1.5)
by
borti4938.
2
layer board of
1.18x0.68
inches
(29.95x17.22
mm).
Shared on
August 8th, 2016 06:16.
Version ‚A3b’ has pads for GND and audio (in) allowing installation with wires to the SCART jack instead of the ‘forks’ for attaching the PCB directly to it.
Thanks to Kel for this modification.
Please use 0.8mm substrate thickness. More information about this PCB can be found here: Link to GitHub

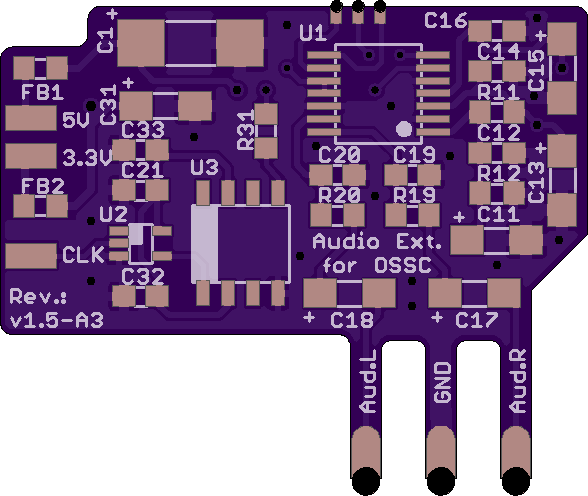

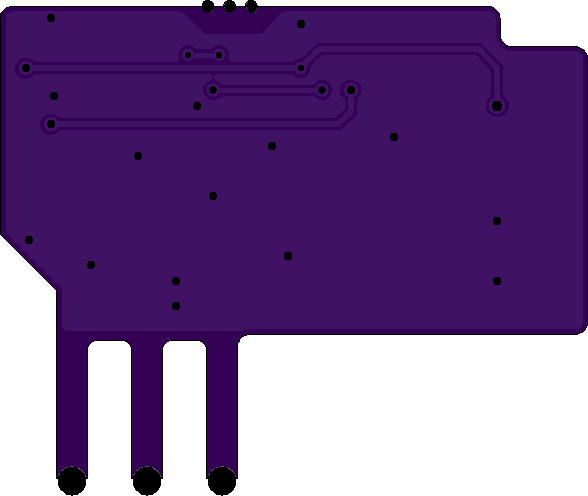

DIY-Audio (Vers. A3) for OSSC (v1.5)
by
borti4938.
2
layer board of
1.18x0.99
inches
(29.85x25.15
mm).
Shared on
July 7th, 2016 11:41.
Please use 0.8mm substrate thickness. More information about this PCB can be found here: Link to GitHub
