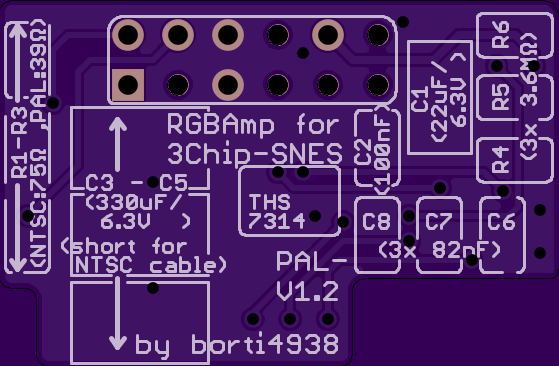

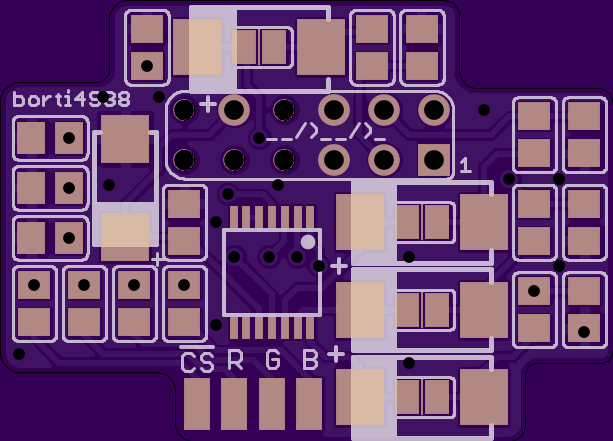

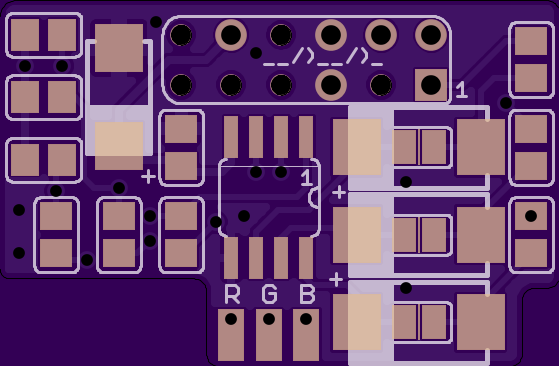

SNES RGB Bypass for PAL-3Chip models
by
borti4938.
2
layer board of
1.12x0.73
inches
(28.42x18.59
mm).
Shared on
February 21st, 2016 18:54.
RGB-Bypass for the SNES (PAL 3Chip-SNES, i.e. SNSP-CPU-01/02) using with a THS7314. See GitHub for details.

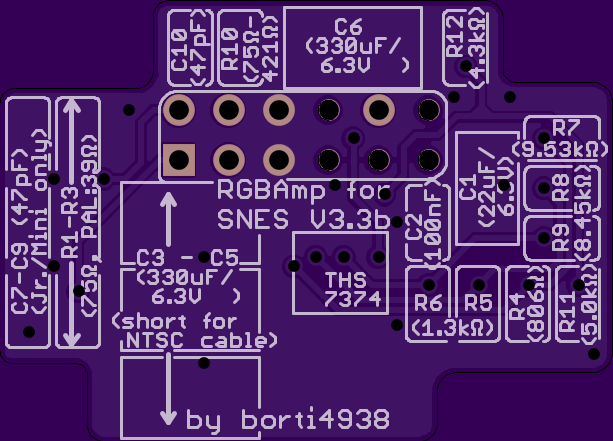

SNES RGB-Bypass Board for 1Chip-03, SNES Mini and SFC Jr.
by
borti4938.
2
layer board of
1.23x0.88
inches
(31.14x22.40
mm).
Shared on
February 11th, 2016 08:56.
RGB-Bypass for the SNES (1Chip-03 model and later) using with a THS7374. See GitHub for details.
Last Edit (02/11/2106): move R12

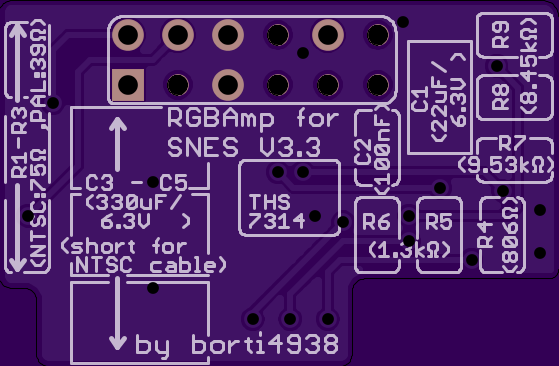

SNES RGB-Bypass Board for 1Chip-01/02
by
borti4938.
2
layer board of
1.12x0.73
inches
(28.42x18.59
mm).
Shared on
February 1st, 2016 10:54.
RGB-Bypass for the SNES (1Chip- model) using with a THS7314. See GitHub for details.
Last Edit (02/01/2106): updated Silkscreen

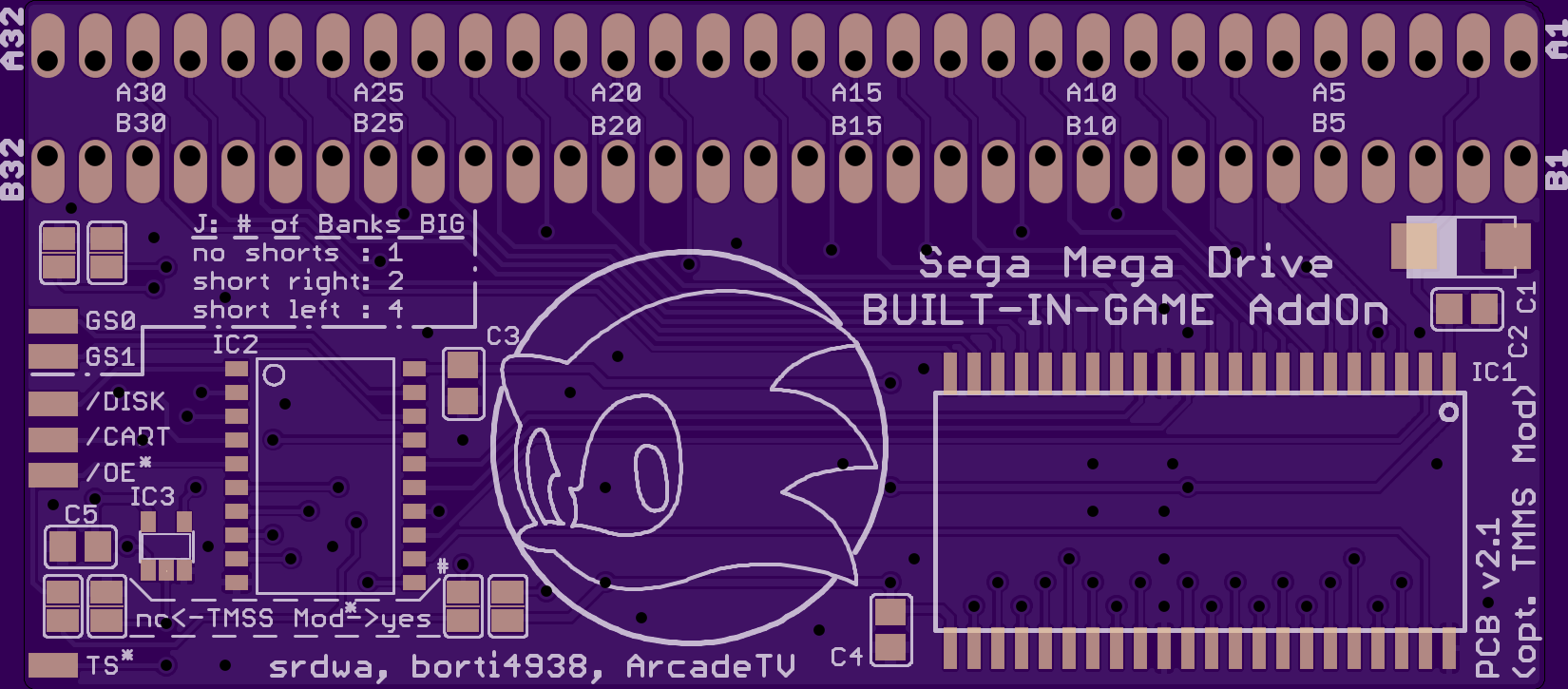

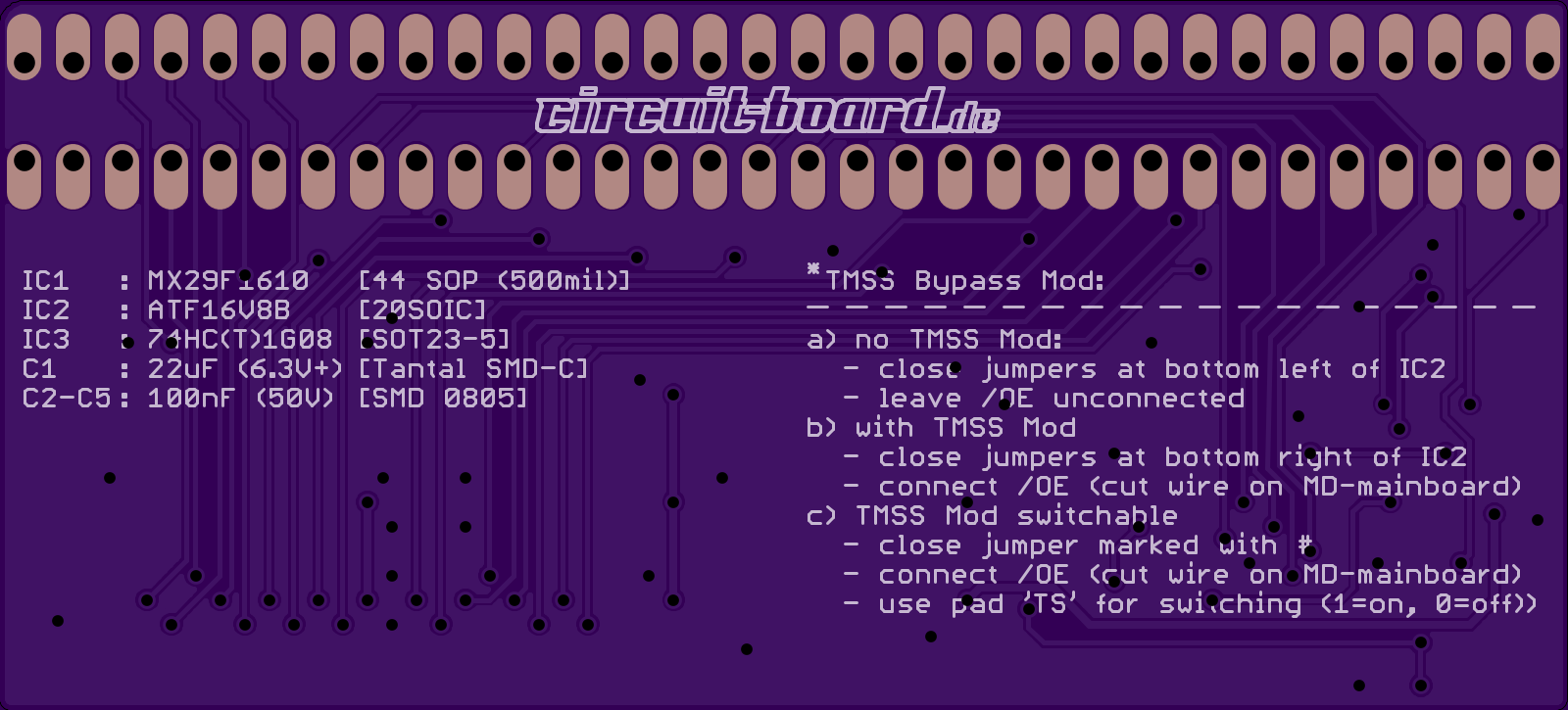

Mega Drive Build-In-Game AddOn incl. a switchable TMSS bypass mod (PCB v2.1)
by
borti4938.
2
layer board of
3.20x1.45
inches
(81.28x36.83
mm).
Shared on
January 27th, 2016 11:54.
- use the beta service with a substrate thickness of 0.8mm
- more information about this project: open GitHub

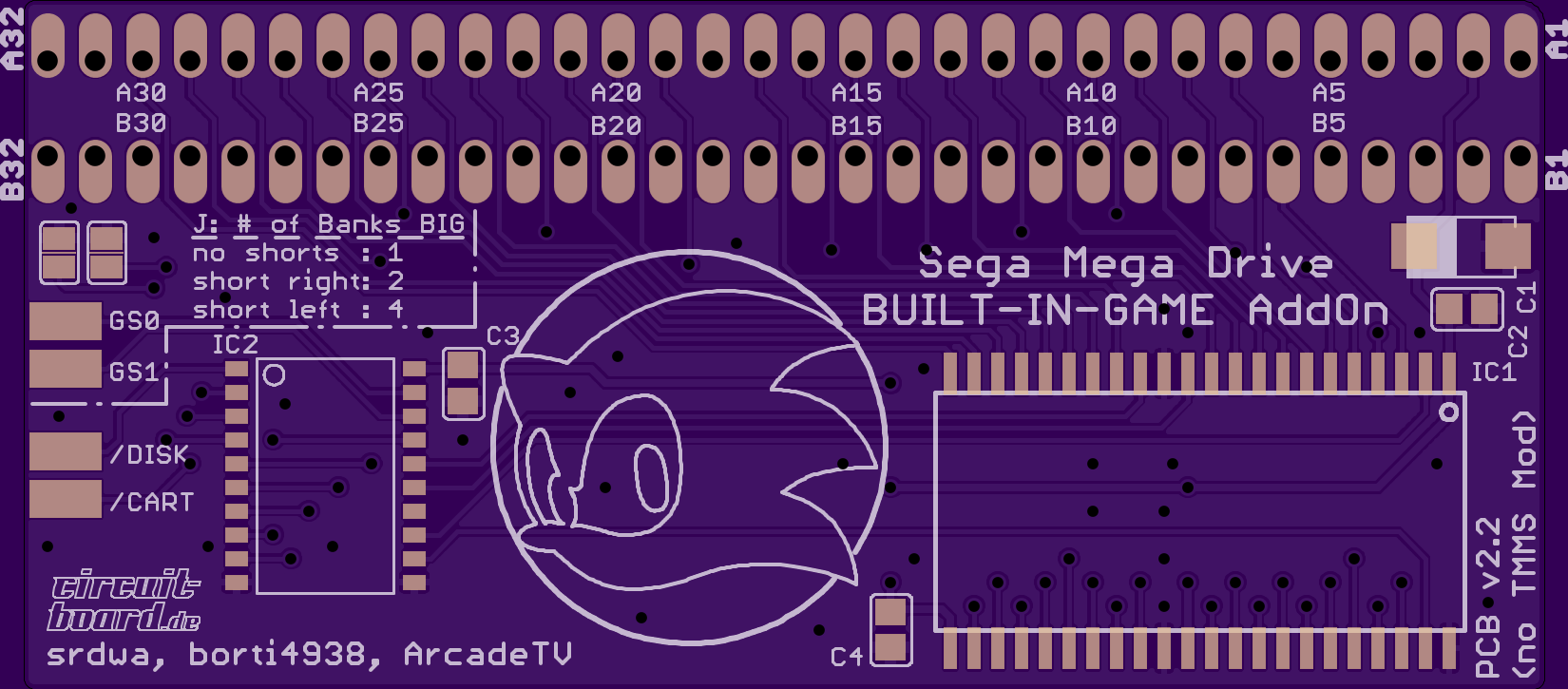

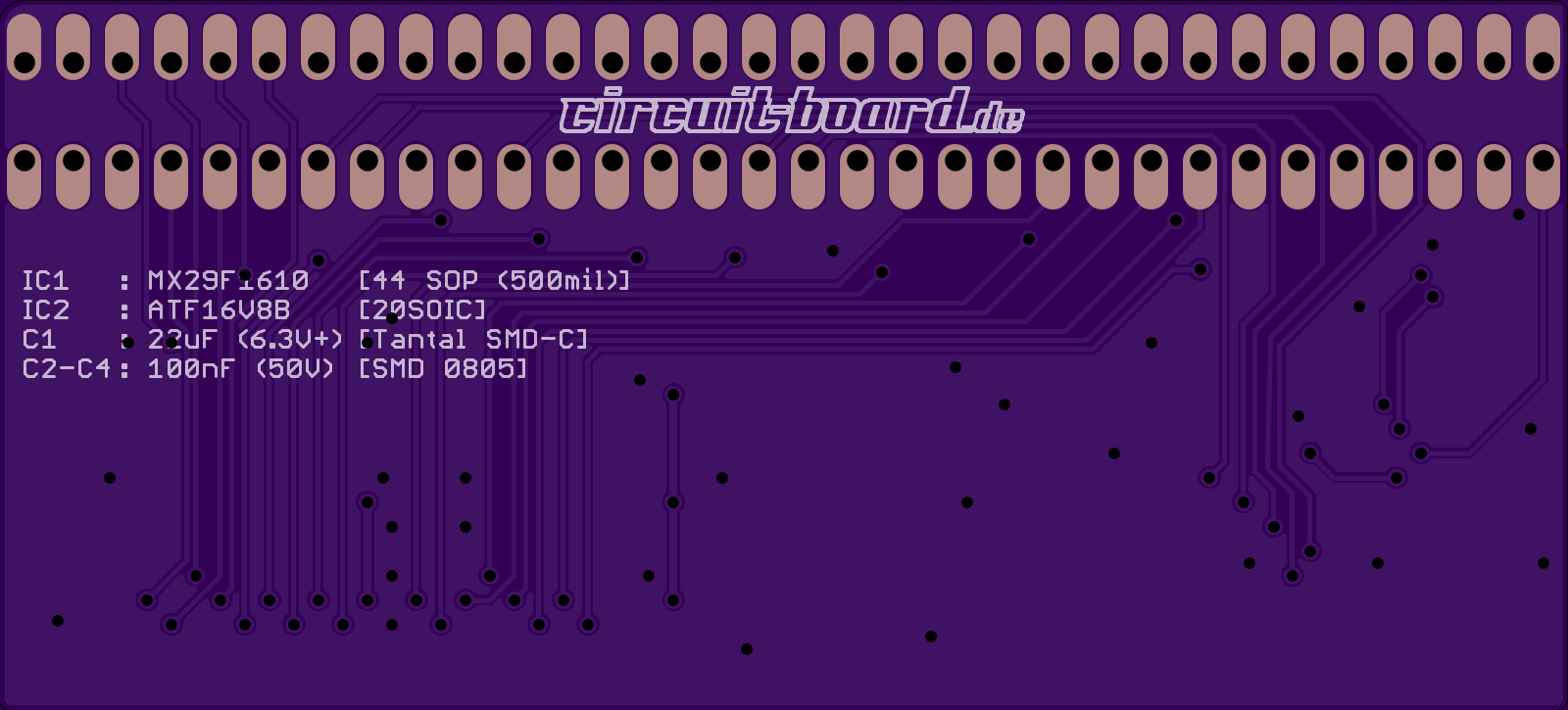

Mega Drive Build-In-Game AddOn (PCB v2.2)
by
borti4938.
2
layer board of
3.20x1.45
inches
(81.28x36.83
mm).
Shared on
January 27th, 2016 11:54.
- use the beta service with a substrate thickness of 0.8mm
- more information about this project: open GitHub
