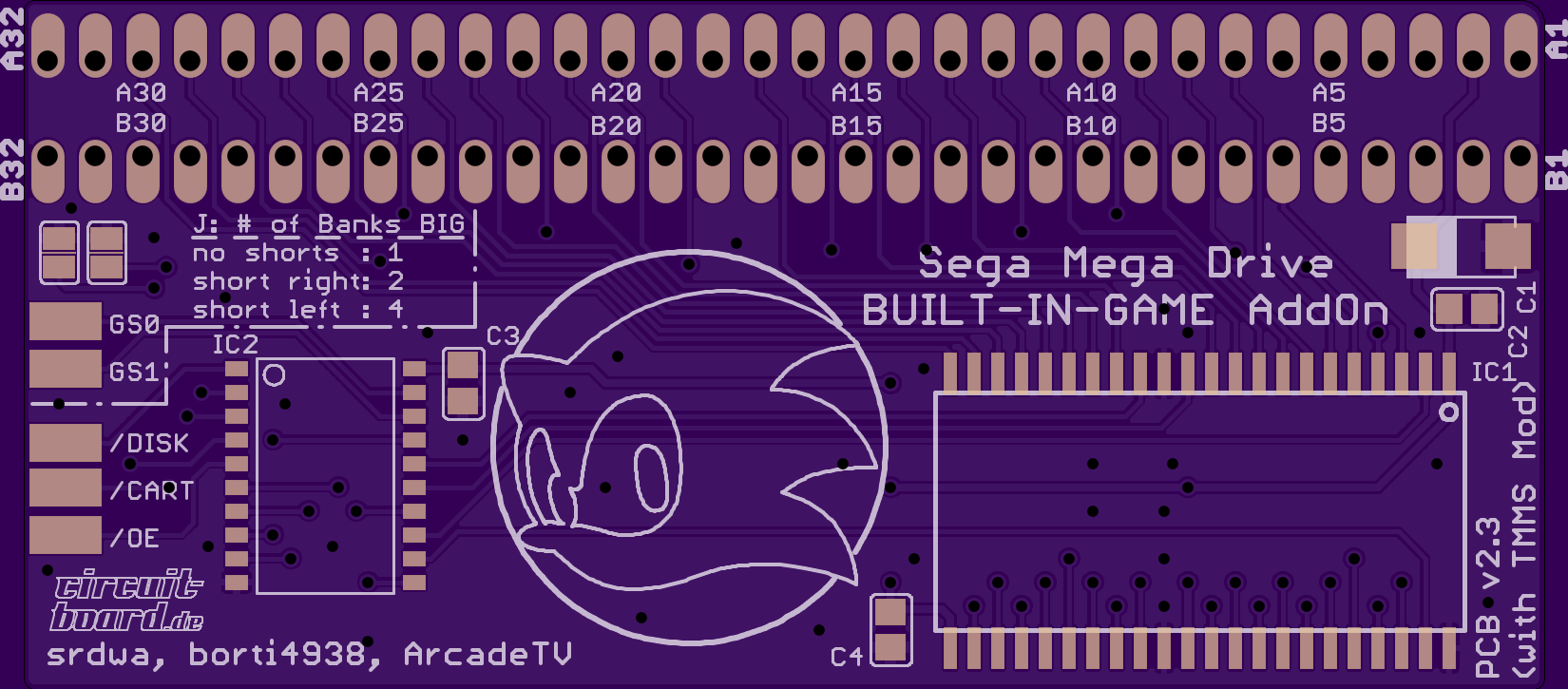

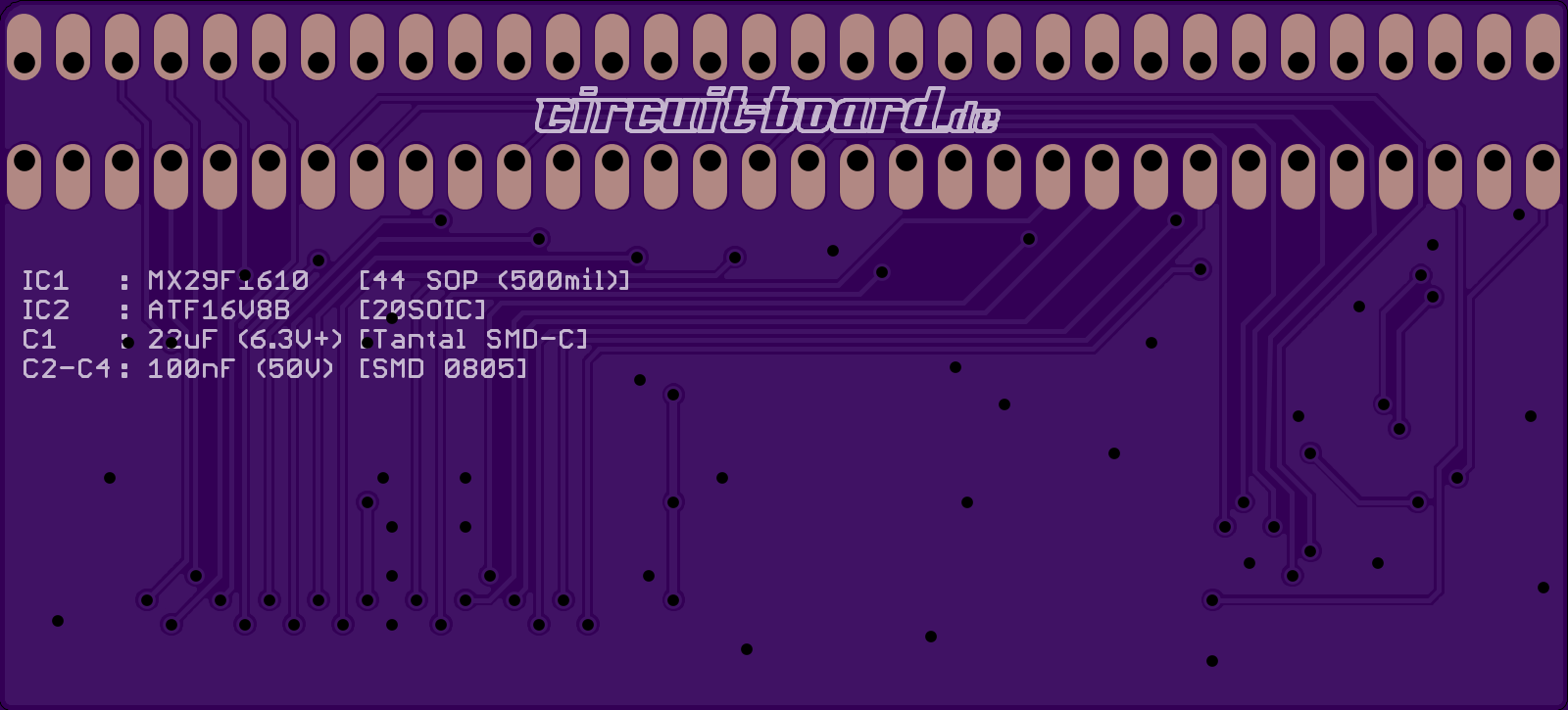

Mega Drive Build-In-Game AddOn incl. TMSS bypass mod (PCB v2.3)

borti4938.

2 layer board of 3.20x1.45 inches (81.28x36.83 mm).
Shared on January 27th, 2016 11:54.

use the beta service with a substrate thickness of 0.8mm
more information about this project: open GitHub

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

SNES Digital Audio with CS8406-CSZ and PLT133

borti4938.

2 layer board of 0.95x1.12 inches (24.13x28.42 mm).
Shared on October 16th, 2015 09:03.

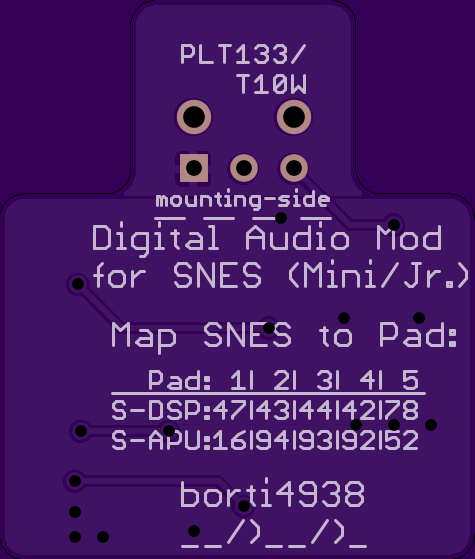

This is just another shape of the Dig.Audio Mod incl. TOSLINK jack. This one should also fit into the SNES mini/jr.

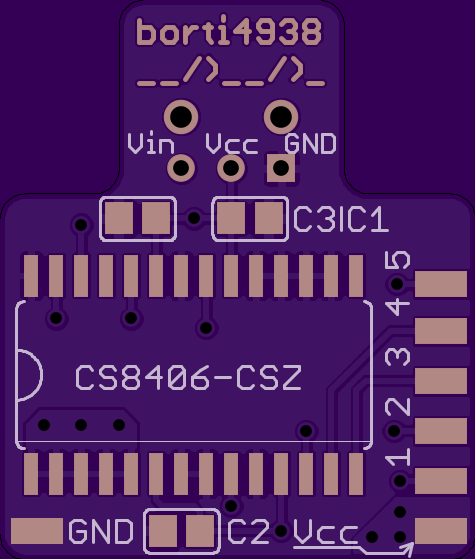

Parts needed: Audio Jack: PLT133/T10W, IC: CS8406-CSZ (SOIC-28), C1-C3: 0.1uF (0805)

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

SNES-LED logo base

borti4938.

2 layer board of 0.64x0.89 inches (16.21x22.71 mm).
Shared on August 26th, 2015 11:31.

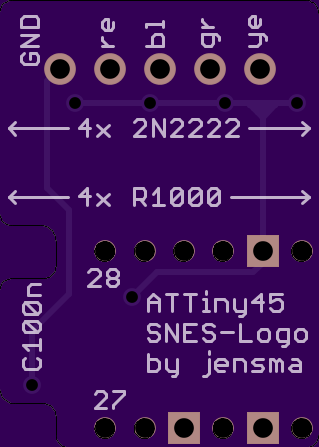

Idea and ATTiny-Code by jensma @ circuit-board.de http://circuit-board.de/forum/index.php/Thread/7573-Super-Nintendo-Beleuchtetes-animiertes-Logo/

Last change: I moved resistors for the LEDs to the PCB of the LEDs.

Parts needed:
- 4x 1kOhm (0805 package)
- 4x 2N2222 (SOT23 package)
- 1x 100nF/50V (0805 package)
- 1x ATTiny45-20SU (SOIC-8 package)

Code for the ATTiny45: http://circuit-board.de/forum/index.php/Attachment/529-sneslogo-attiny45-zip/
Fuses:
- low: 0xe2
- high: 0xdf

PCB has to be soldered to the Expansion port.

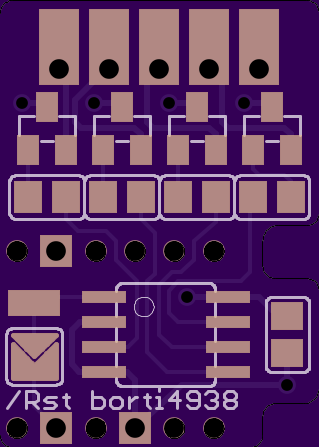

/RST is to reinitiate the logo animation. Either close the jumper (animation on every system reset) or connect the pad with the CIC-lock pin10 (animation only on user reset). NEVER do both!!!

Looking for the counterpart? Here it is: https://oshpark.com/shared_projects/8jJG2ZIz

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

SNES-LED-Logo

borti4938.

2 layer board of 0.90x0.88 inches (22.89x22.23 mm).
Shared on August 26th, 2015 11:31.

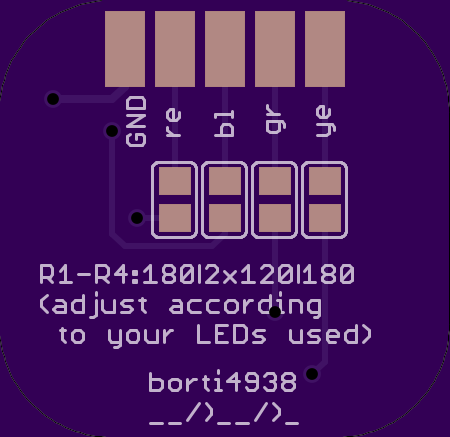

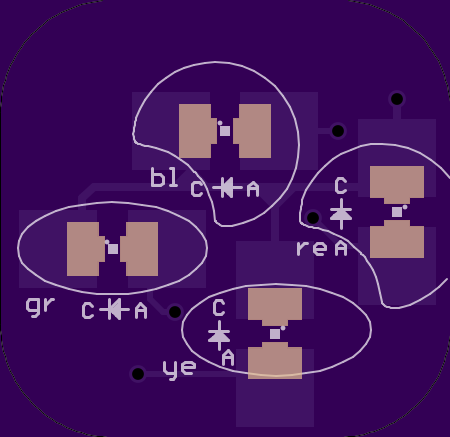

Last changes: Move resistors for LEDs to the LED-PCB. LEDs in 0805 package or P-LCC-2 package can be used.
