N64-RGB-DAC Mod
by
borti4938.
2
layer board of
1.93x1.28
inches
(48.90x32.41
mm).
Shared on
June 7th, 2017 14:03.
More information about the project on GitHub
Altera USB Blaster JTAG Adapter...
by
borti4938.
2
layer board of
2.41x1.36
inches
(61.29x34.62
mm).
Shared on
April 23rd, 2017 19:31.

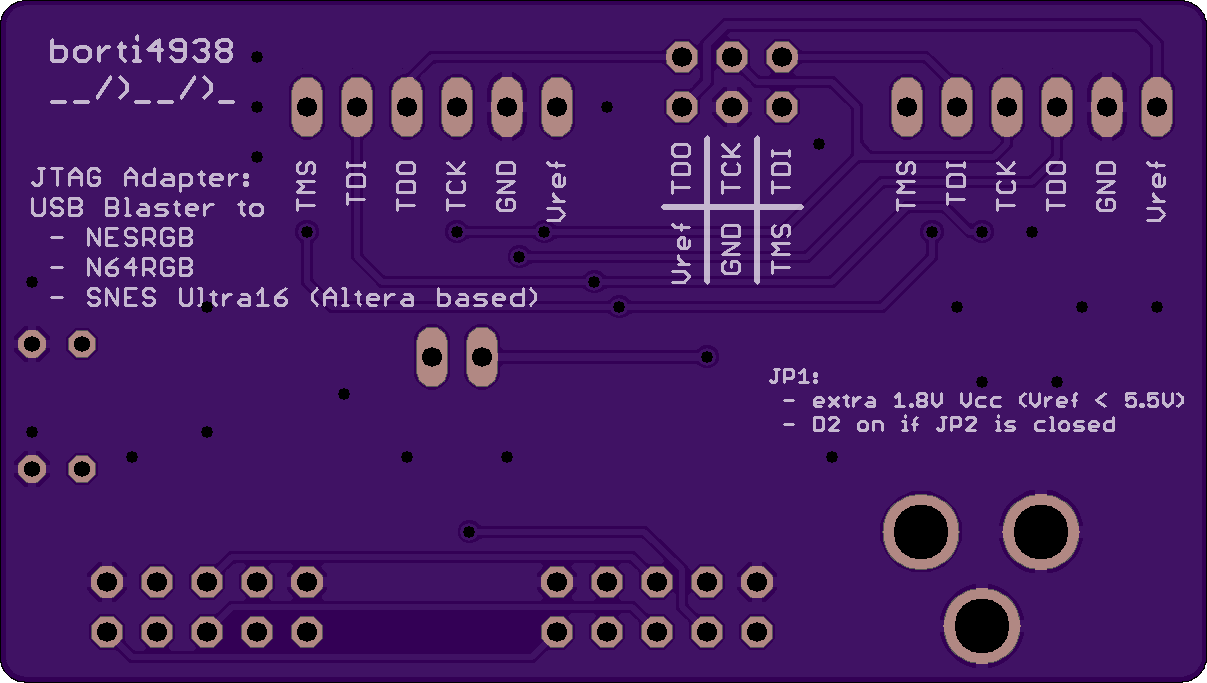

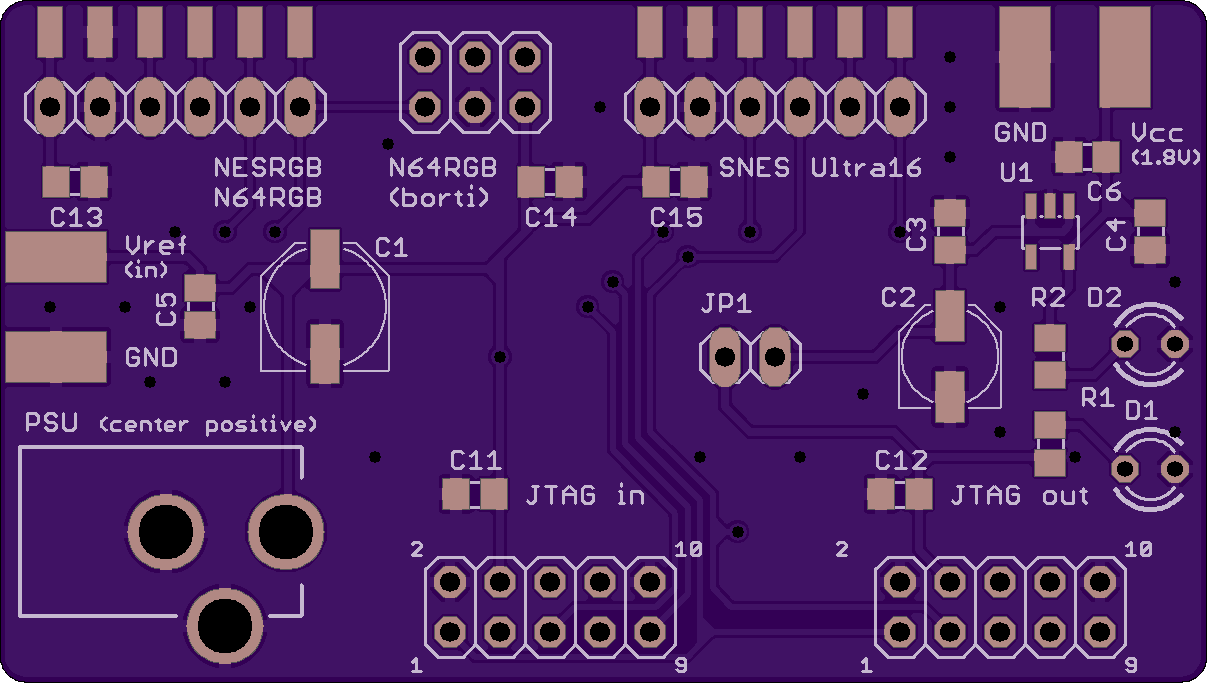

… for several modding boards:
- NESRGB
- N64RGB
- SNES Ultra16
You have the opportunity to introduce Vref using a PSU to the Adapter on all connections. If needed, you can also generate Vccint in addition on the board.
All connections are interconnected!
MAV-NUS / AVDC-NUS BreakOut Adapter
by
borti4938.
2
layer board of
0.36x0.53
inches
(9.12x13.36
mm).
Shared on
April 23rd, 2017 17:54.
More information about the project on GitHub

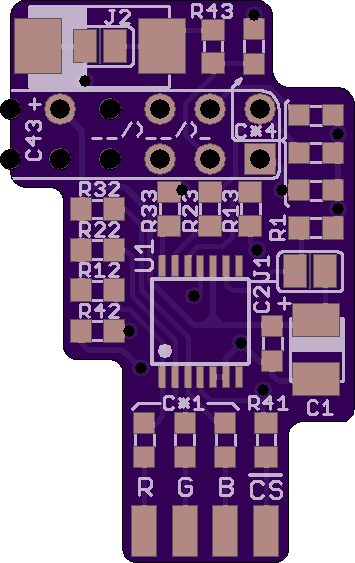

A small adapter for the N64 RGB mod. - use the service with 0.8mm substrate thickness - preparation: make sure that there are no shorts between adjacent pads on the MAV-NUS-side of the PCB due to the manufacturing process - installation: hold the PCB to the MAV-NUS / AVDC-NUS (pin 1 to pin 13), solder and fix (e.g. with hot glue) the PCB in place.
If you intend to buy the RGB modding board from viletim and you have a MAV-NUS or AVDC-NUS inside your N64, I suggest you to buy the flex cable there, too, as the istallation should be easier with the flex cable, though.
N64 RGB Amp... (V1.1)
by
borti4938.
2
layer board of
0.71x1.13
inches
(17.98x28.60
mm).
Shared on
April 23rd, 2017 17:46.

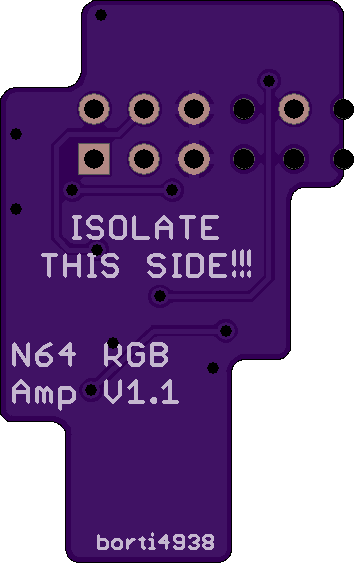

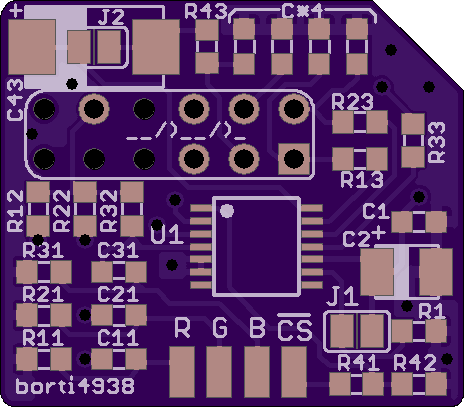

…based on a THS7374 / THS7373 for the ‘simple’ RGB out modification (NUS-CPU-01..04).
Order this board with a substrate thickness of 0.8mm!
More information about the project on GitHub
