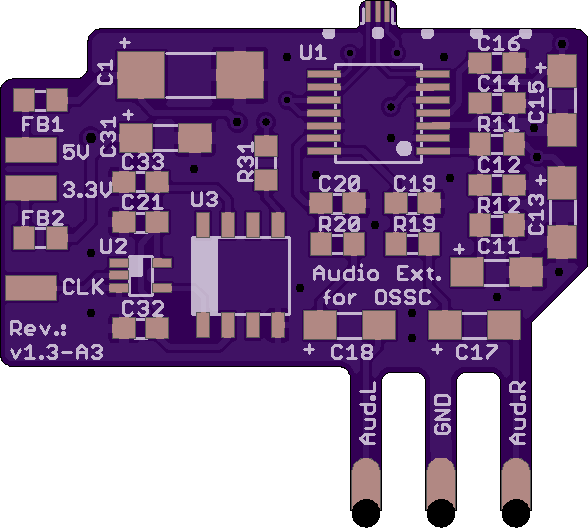

DIY-Audio (Vers. A3) for OSSC (v1.3)

2 layer board of 1.18x1.05 inches (29.85x26.75 mm).
Shared on April 26th, 2016 17:45.

Please use 0.8mm substrate thickness. More information about this PCB can be found here: Link to GitHub

Order board. Download. Permalink. Embed order link.

SNES multi-region modding PCB for 1Chip-models

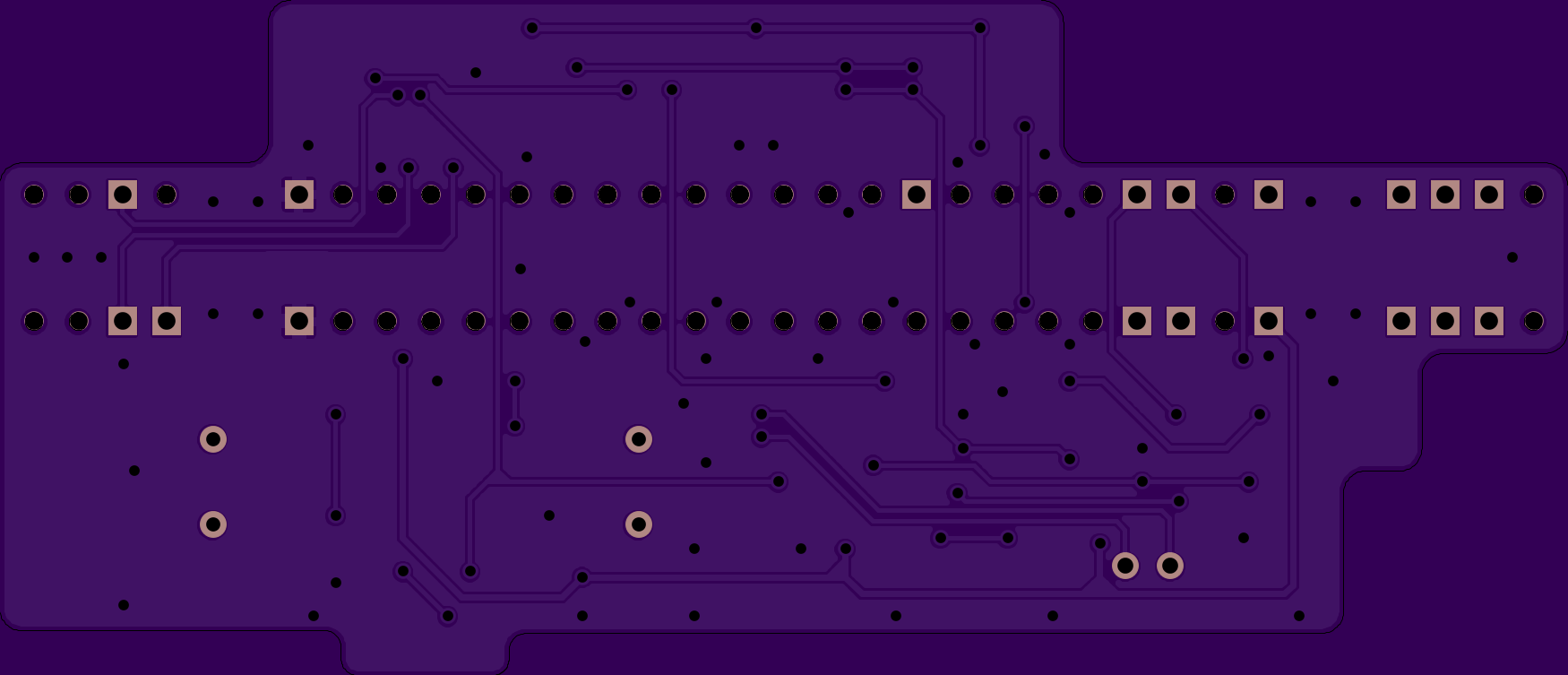

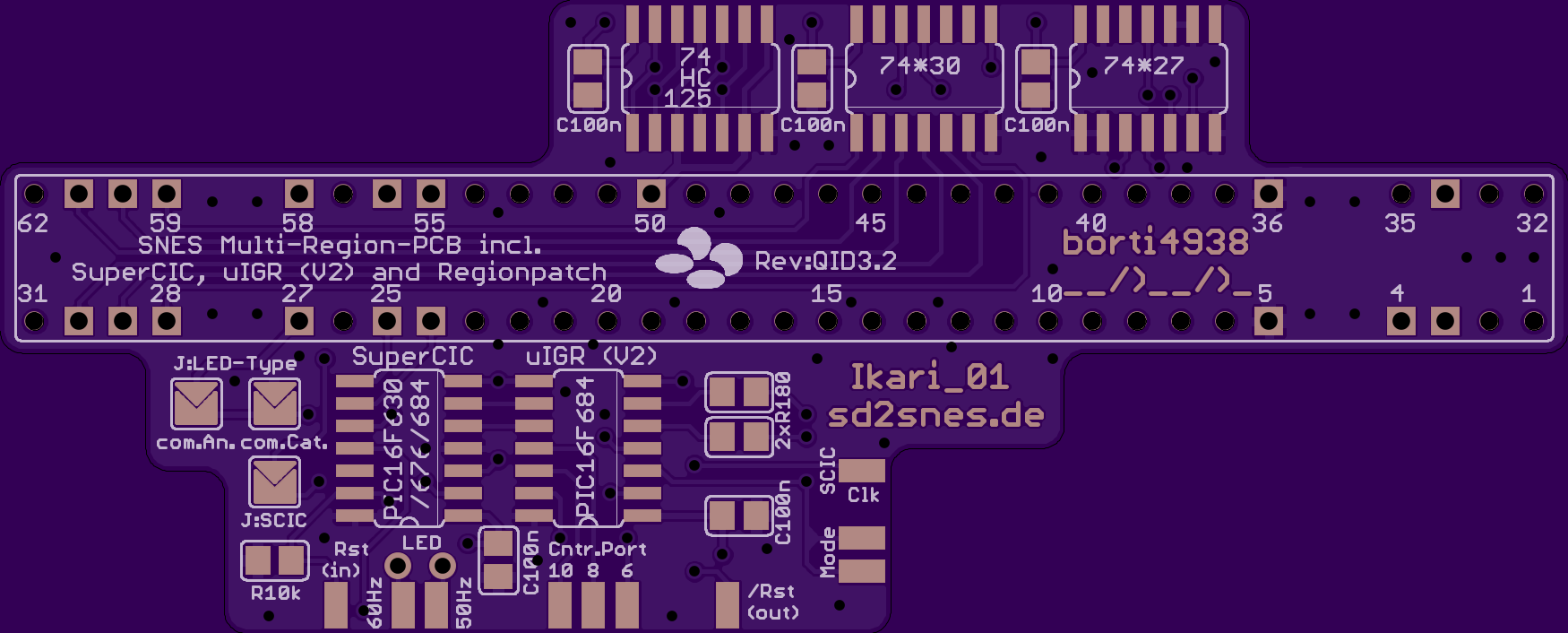

2 layer board of 3.50x1.51 inches (88.90x38.28 mm).
Shared on April 22nd, 2016 11:53.

• 1Chip-model = all models with a S-CPUN
• use the beta service with a substrate thickness of 0.8mm
• more information about this project: open GitHub

Order board. Download. Permalink. Embed order link.

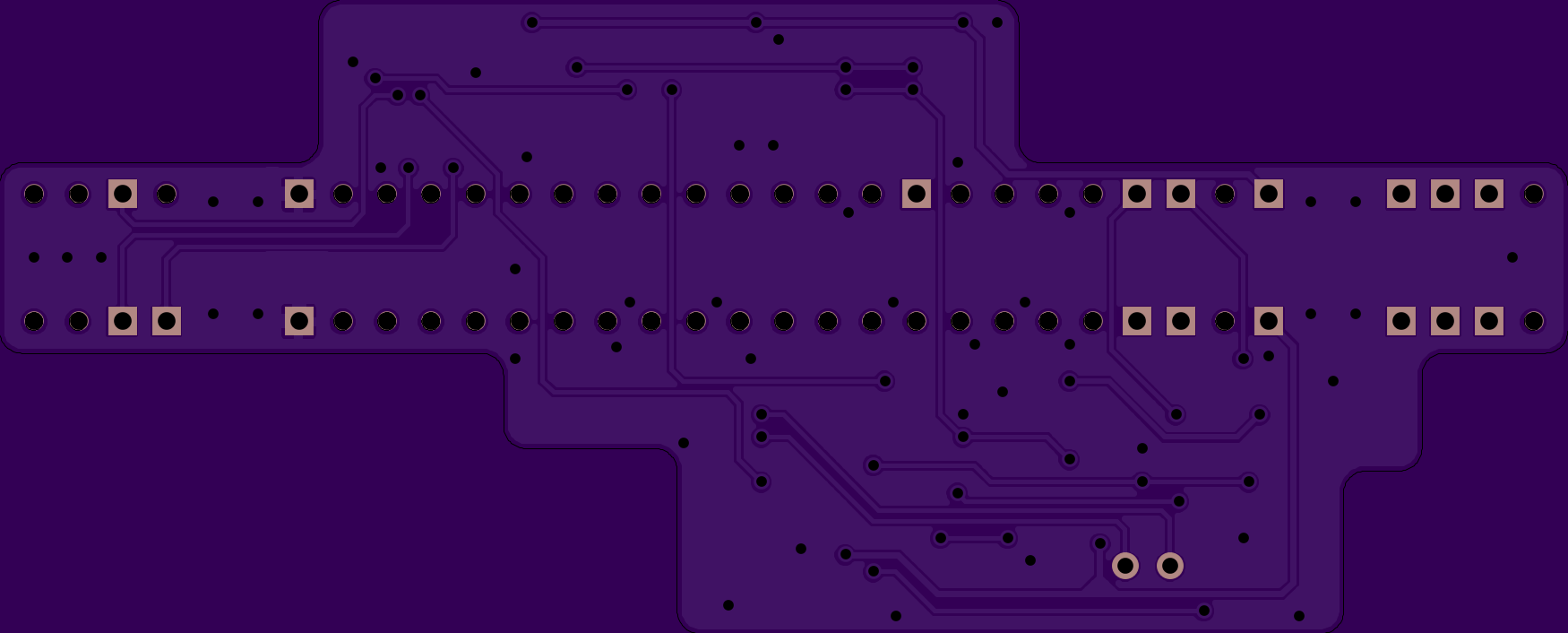

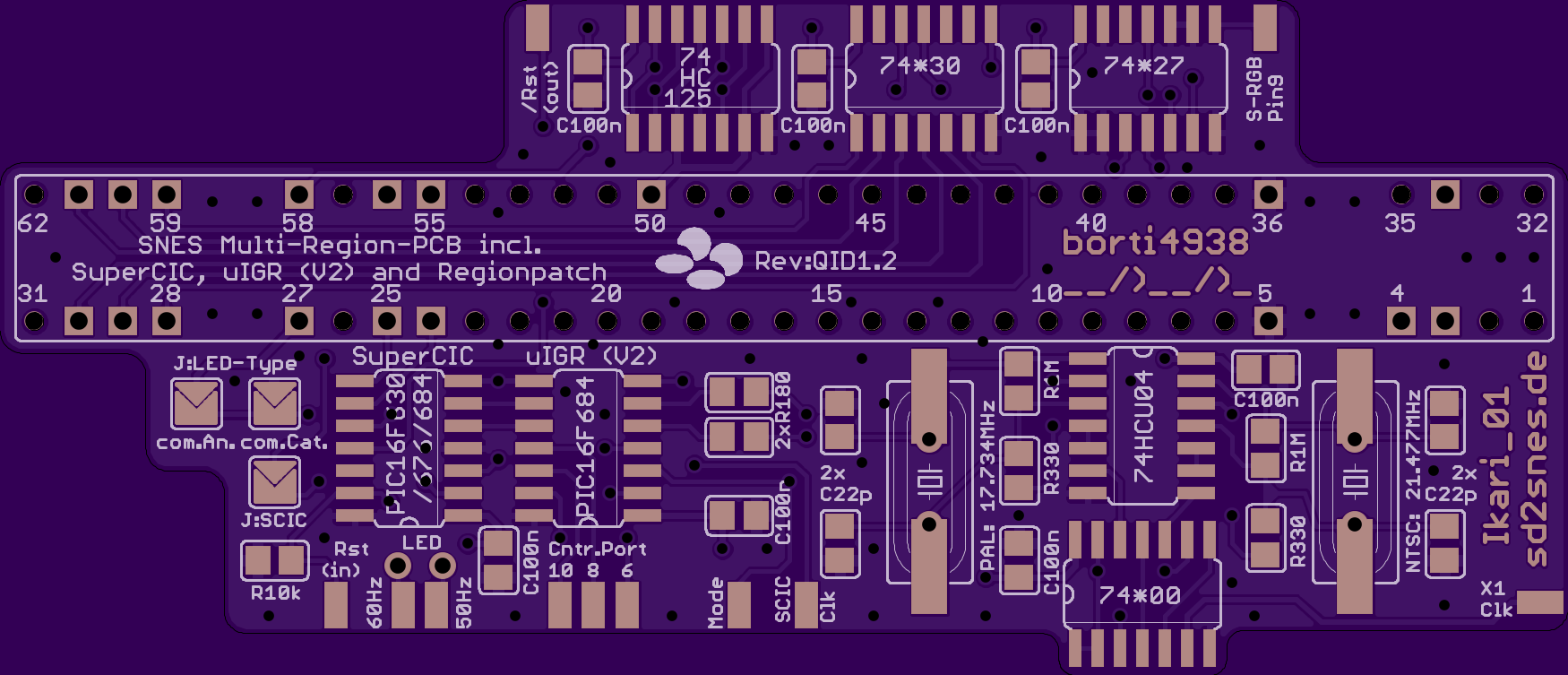

SNES multi-region modding PCB for 3Chip-models

2 layer board of 3.50x1.41 inches (88.90x35.89 mm).
Shared on April 22nd, 2016 11:53.

• SNES 3Chip-model = dedicated S-CPU, S-PPU1 and S-PPU2
• use the beta service with a substrate thickness of 0.8mm
• more information about this project: open GitHub

Order board. Download. Permalink. Embed order link.

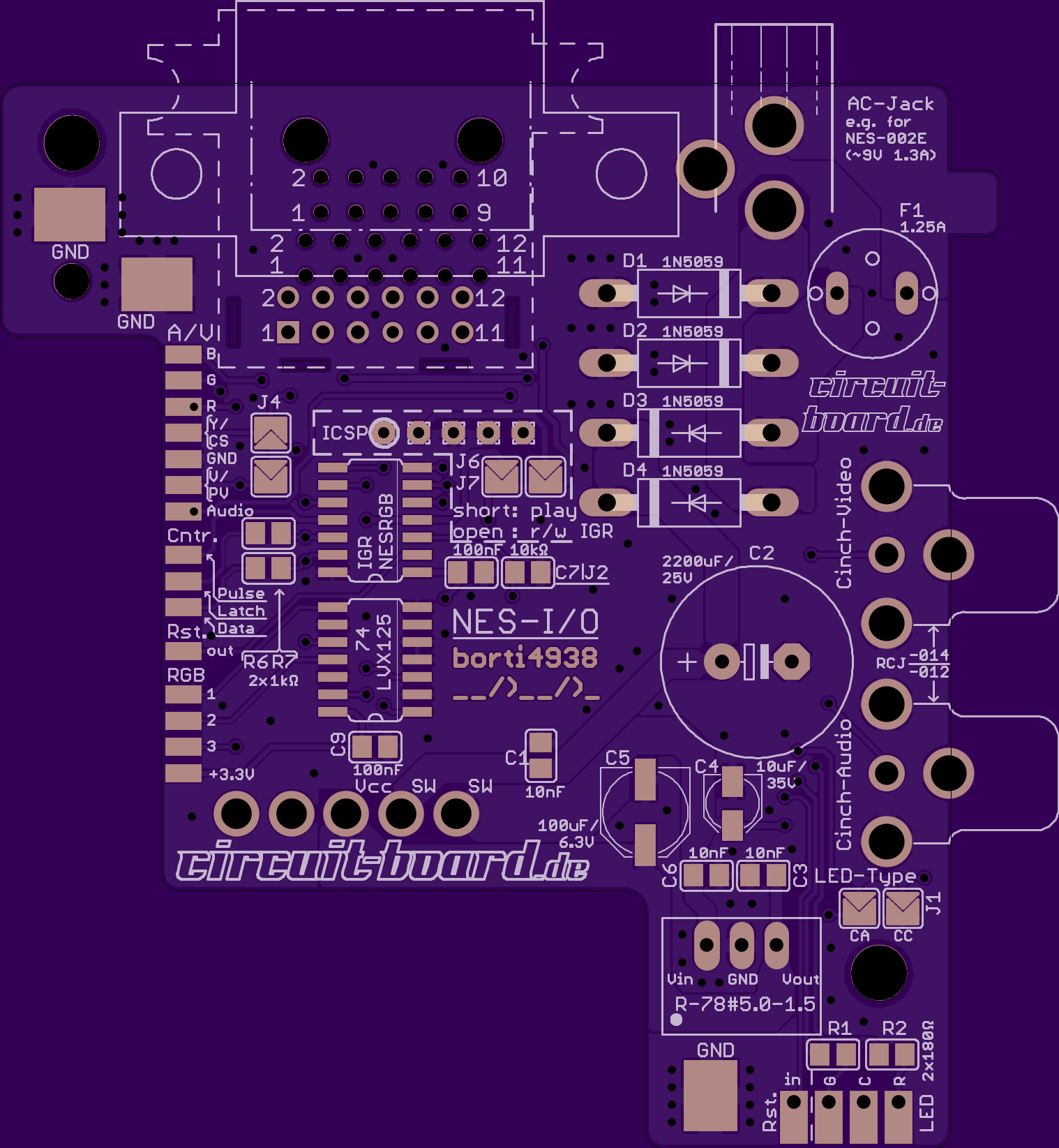

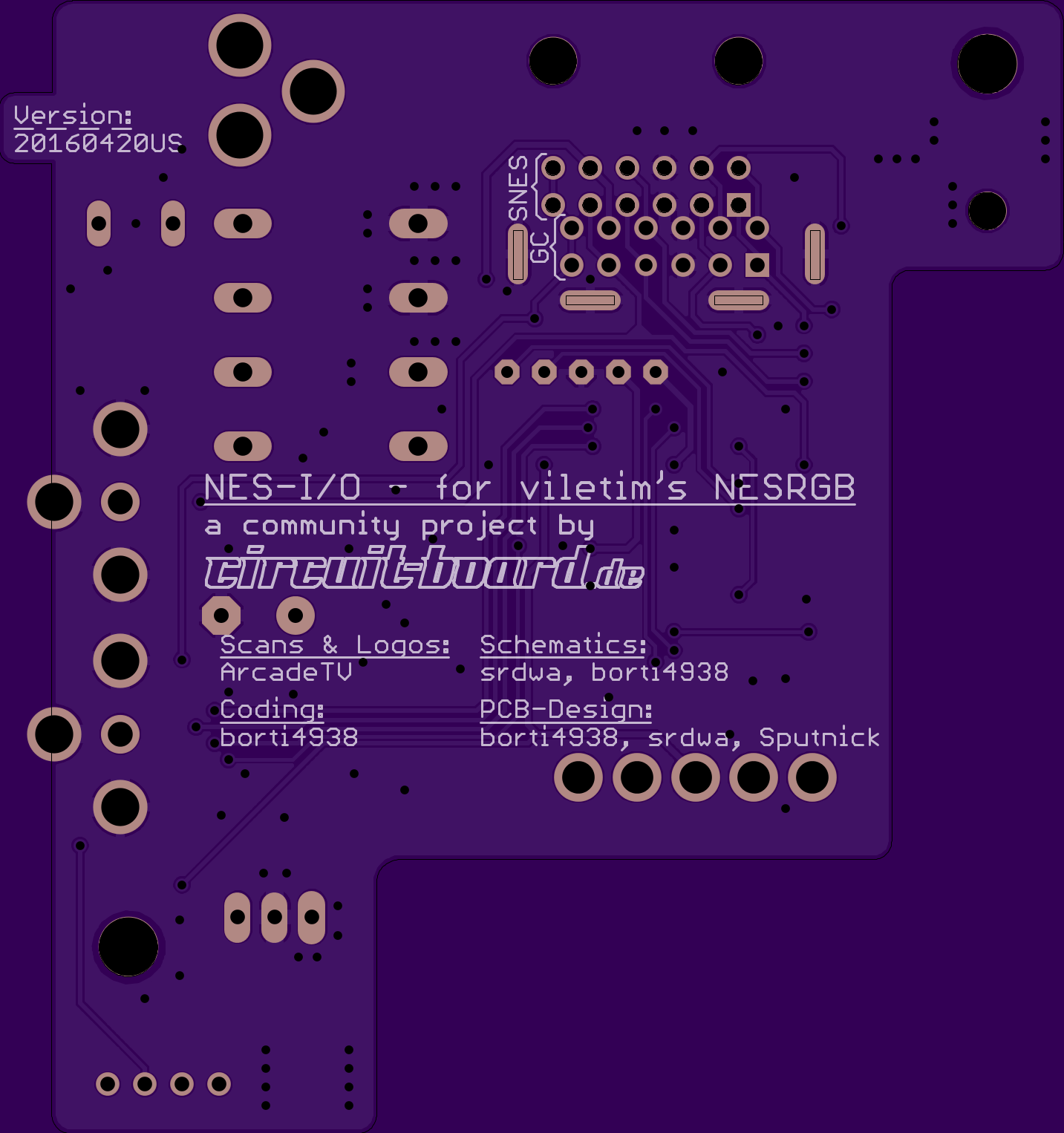

NES-I/O (Vers. 20160420US)

2 layer board of 2.87x3.05 inches (72.82x77.52 mm).
Shared on April 22nd, 2016 11:46.

More information: GitHub and Circuit-Board

Order board. Download. Permalink. Embed order link.

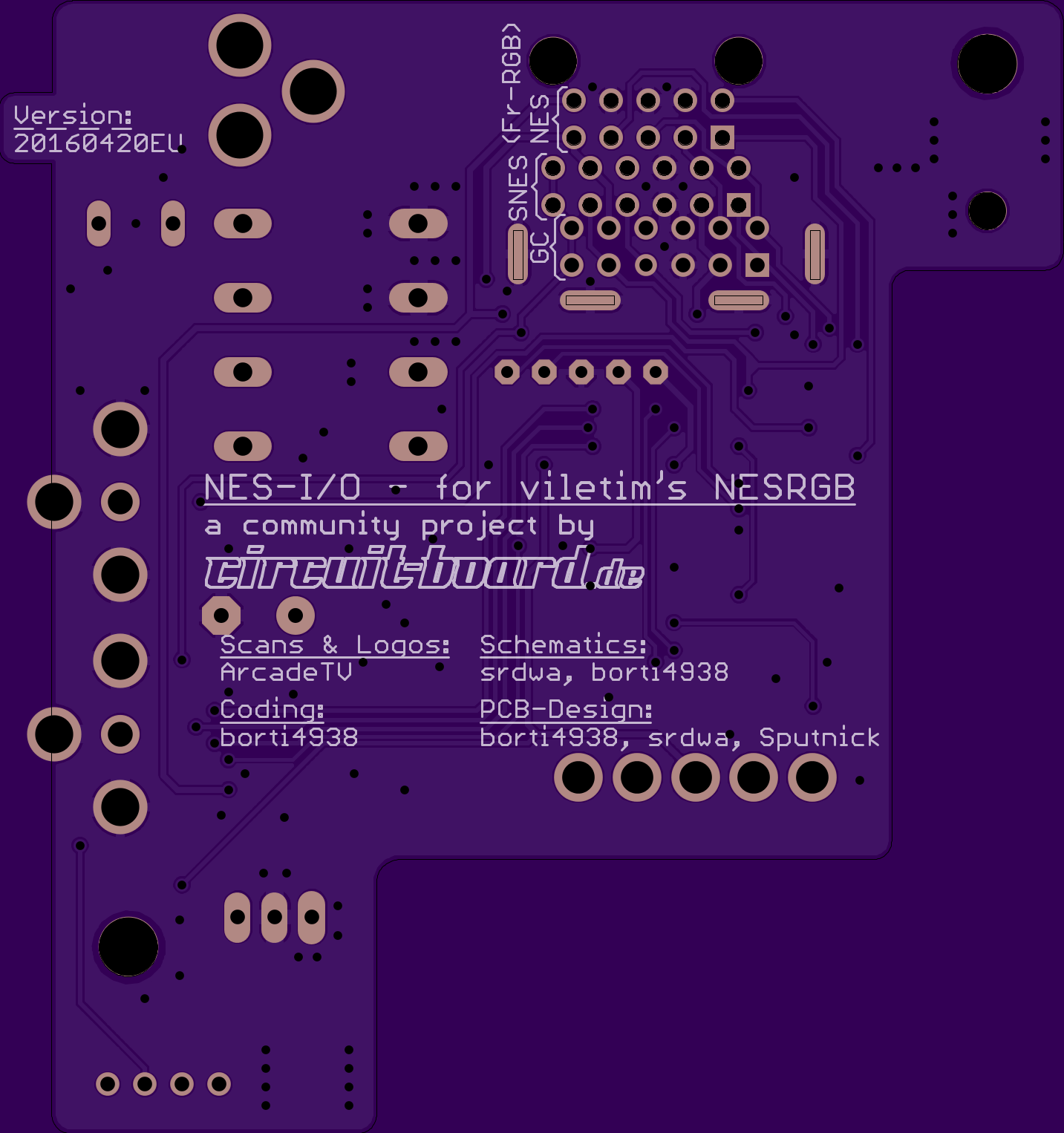

NES-I/O (Vers. 20160420EU)

2 layer board of 2.87x3.05 inches (72.82x77.52 mm).
Shared on April 22nd, 2016 11:46.

More information: GitHub and Circuit-Board

Order board. Download. Permalink. Embed order link.
