Sample Holder Final
by
ashragai.
2
layer board of
0.55x0.55
inches
(14.02x14.02
mm).
Shared on
April 1st, 2017 21:48.
Sample Holder 4K MScope
NorthernLynx's contact board
by
DEL.
2
layer board of
1.02x0.89
inches
(25.86x22.66
mm).
Shared on
April 1st, 2017 12:40.
Simple momentary tactile with FET relay for Yezl Y3.
LPC824 Development Board
by
teamboyce.
2
layer board of
0.95x1.65
inches
(24.13x41.91
mm).
Shared on
April 1st, 2017 10:05.
Development board for the NXP LPC824.
Software is downloaded using the boot loader over the serial port.
I designed this board to try out soldering a HVQFN33 and to play with the NXP LPC824 cotrex M0+ CPU.
NOTE: This is untested currently.

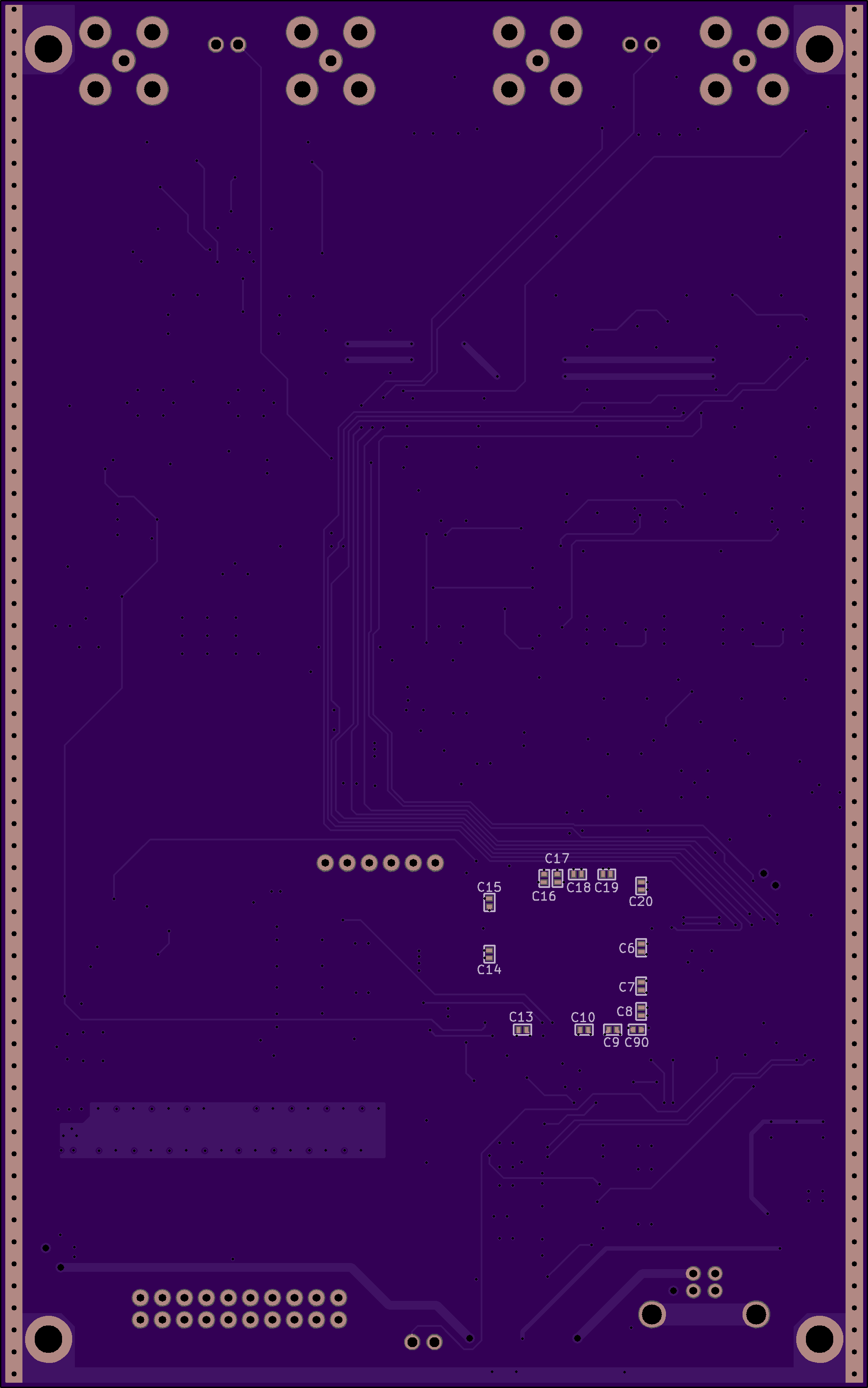

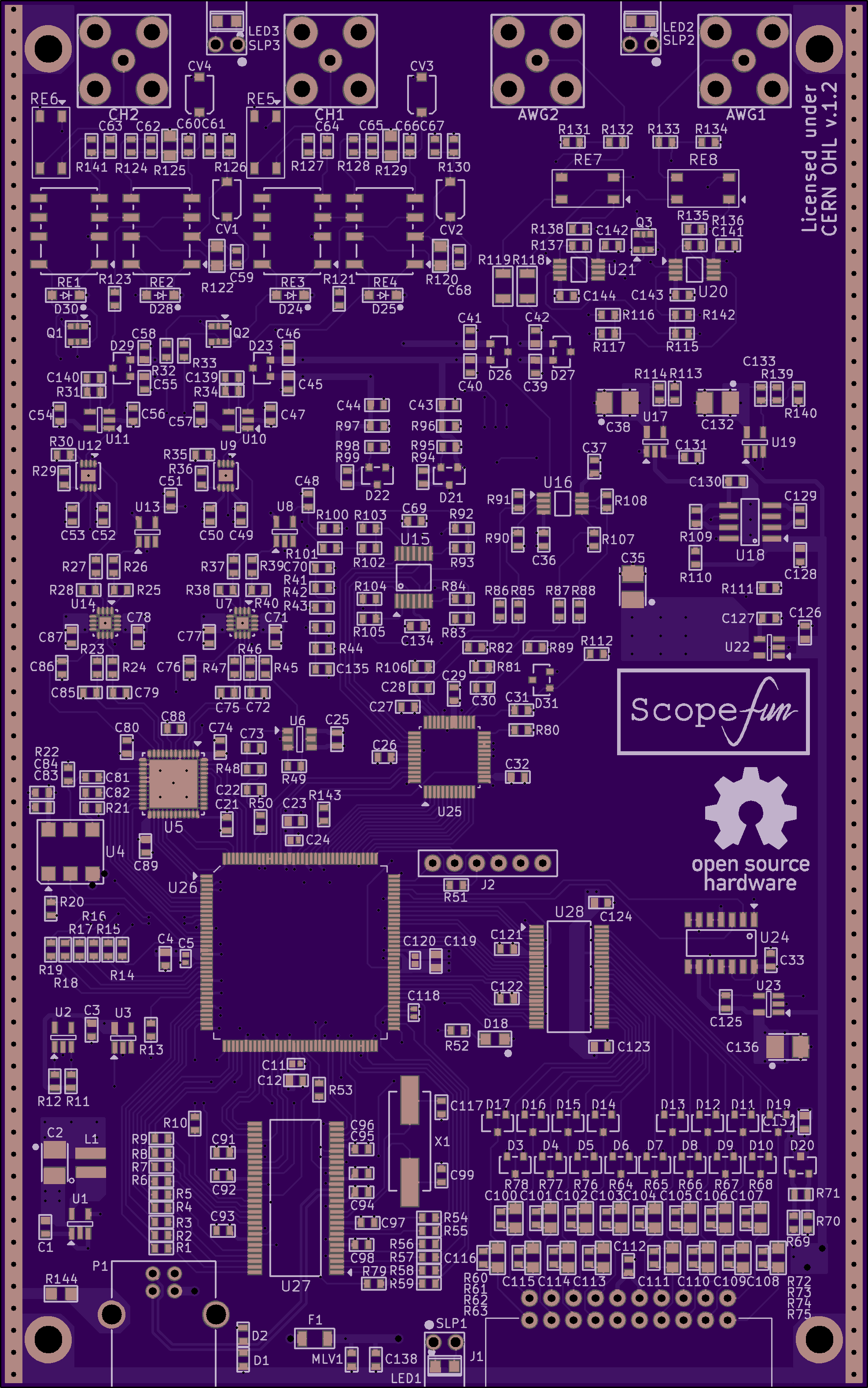

ScopeFun Oscilloscope
by
zendx.
4
layer board of
3.94x6.31
inches
(100.15x160.17
mm).
Shared on
April 1st, 2017 05:56.
Hi Density Groundplane Perfboard
by
nsayer.
2
layer board of
4.09x4.09
inches
(103.94x103.94
mm).
Shared on
April 1st, 2017 04:26.
Ordinary perfboard suffers from a couple of problems… First, it has no groundplane, so there’s nothing to prevent excessive radiated noise. Also, today’s parts tend to have much higher density leads, meaning the holes must be drilled closer together. The added groundplane and plated through vias also will aid in heat dissipation by acting as “chimneys,” as if often done with high density surface mount power devices.
NOTE: This was an April Fools joke.
