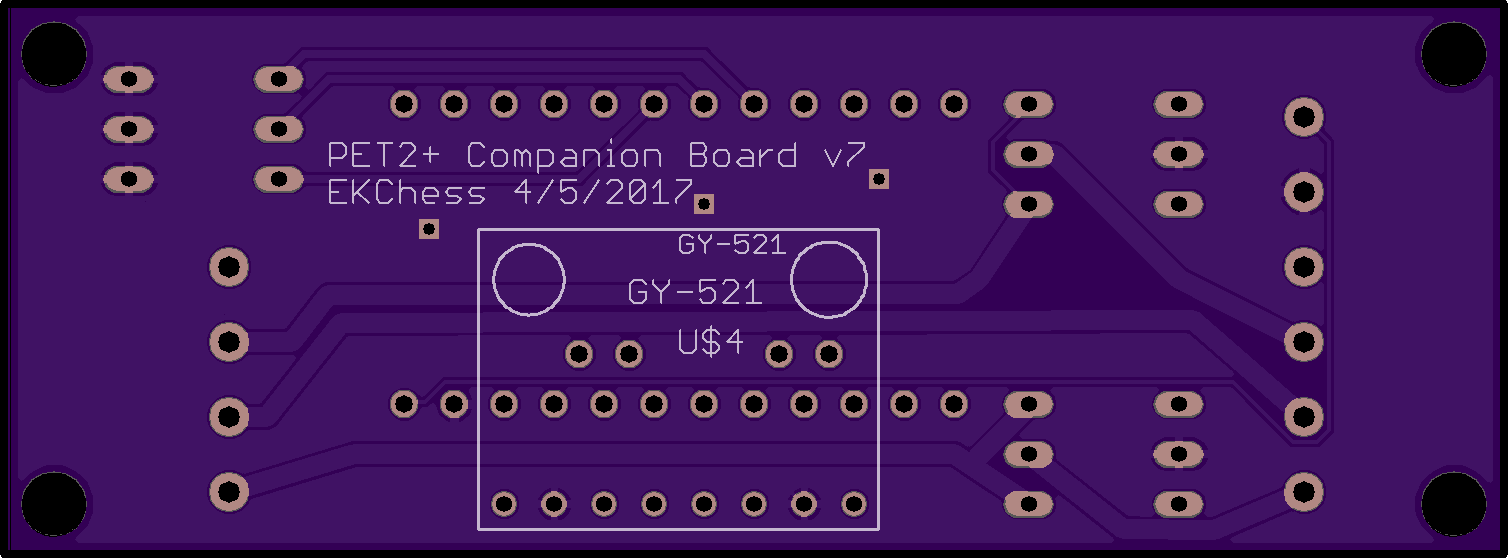

PET2_COMPANIONv7.brd

2 layer board of 3.02x1.12 inches (76.61x28.35 mm).
Shared on April 2nd, 2017 23:04.

Companion board for PET2+ timer with DIP switch. Uses an Arduino Pro Mini and a MPU6050 (GY-521) 6-axis accel/gyro breakout board.

Order board. Download. Permalink. Embed order link.

spider

2 layer board of 0.89x1.18 inches (22.50x30.00 mm).
Shared on April 2nd, 2017 18:54.

Home automation IR/RF hub connecting and ATMega(32/8)8 to and esp8266, an NRF24L01+, a 433Mhz transmitter and an IR transmitter/receiver pair.

Order board. Download. Permalink. Embed order link.

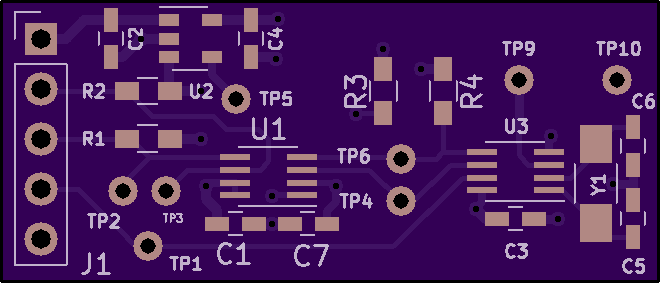

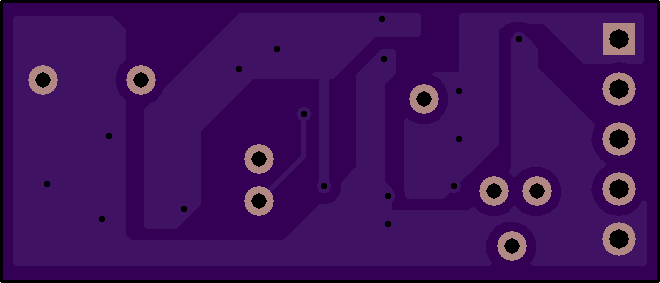

RTC Dev Board.kicad_pcb

2 layer board of 1.32x0.57 inches (33.55x14.38 mm).
Shared on April 2nd, 2017 18:16.

I2C level shifter and Maxim RTC

Repository

https://github.com/wsender/rtc_devboard

Order board. Download. Permalink. Embed order link.

BLF driver DDm-K2 [rev01a][untested]

2 layer board of 1.34x1.34 inches (33.99x33.99 mm).
Shared on April 2nd, 2017 17:32.

DDm driver for Solarstorm/Fandyfire K2 lights.

Revision changes

• Full size SOT-89 pads for the 7135
• Unmasked L+ vias, to be solder-filled

Needs the DDm-K2-SW daughter board for the tactile switch and indicator LEDs:

https://oshpark.com/shared_projects/E7YKjPjG

‘Standard’ DDm parts list, except for:

• R1 and R2 are populated if MCU pin 7 is used for cell voltage monitoring. This could, however, be done using the software-only method of Vcc vs. the internal 1.1 V reference.
• R7 is populated when re-purposing pin 7 to drive a second indicator LED, as per the stock driver.
• There is an R1 on the back of the switch board. A jumper here rewires the two indicator LEDs in parallel, both to be driven from MCU pin 3.

Order board. Download. Permalink. Embed order link.

KX3 Serial Port Expander

2 layer board of 1.10x0.63 inches (27.94x15.88 mm).
Shared on April 2nd, 2017 17:24.

Serial interface for KX2 and KX3

Order board. Download. Permalink. Embed order link.
