600 W Solid State Amplifier from 10 kHz to 400 MHz

The 600A400 is a self-contained, air-cooled, broadband solid-state amplifier that operates from 10 kHz to 400 MHz. The amplifier provides an output power of up to 600 watts from 0.01 to 250 MHz and 500 watts of RF power from 250 to 400 MHz. It has been designed for applications where instantaneous bandwidth, high gain and linearity are required. This device has a Digital Control Panel (DCP) which provides both local and remote control of the amplifier. The digital display on the front panel indicates the operation status and fault conditions like if a power supply fault has occurred. All amplifier control functions and status indications are available remotely via GPIB/IEEE-488, RS-232 hardwire, USB or Ethernet interfaces. The 600A400 is protected from RF input overdrive by an RF input leveling circuit which controls the RF input level to the RF amplifier first stage when the RF input level is increased above 0 dBm. It also has a safety interlock circuit for use with external safet...Click here to view specs.

C-Band Solid State Bidirectional Amplifier from 4.4 to 5.1 GHz

The NW-BA-C-10-RX02 from NuWaves is a C-Band Solid State Bidirectional Amplifier module that operates from 4.4 to 5.1 GHz. It provides a gain of 10 dB with a RF power of up to 10 watts while operating with 20% power efficiency. The BDA has an auto-sense transmit / receive (T/R) control, with an extremely fast T/R mode switch time of under 2 uS. It is available in a module that measures 3.57 x 2.57 x 0.50 inches with SMA female, right angle connectors and is ideal for broadband RF telemetry, software defined radios, Unmanned Aircraft systems and communication systems. Click here to view specs.

20W/40W Dual Channel Power Amplifier from 1805 to 2200 MHz

The PTNC210604MD is a two-stage, dual-channel LDMOS power amplifier that operates from 1805 to 2200 MHz. It provides dual independent outputs with 20 W and 40 W of output power each while operating over a supply of 28 V. This amplifier has On-chip matching for broadband operation, integrated ESD protection and temperature compensation. It is available in a lead-free RoHS complaints package. Click here to view specs.

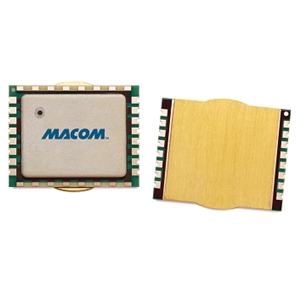

2-Stage Hybrid GaN PA Module from 225 to 2600 MHz

The MAMG-100227-010C0L is a GaN-on-Si hybrid power amplifier (PA) that operates from 225 to 2600 MHz. It delivers an output power of 10 W CW, power gain of 22 dB with a power added efficiency (PAE) of 40%. This broadband module combines the design efficiencies of a fully-matched (50 Ohms), two-stage PA architecture with top-side and bottom-side mounting configurability. It is available in a 14 x 18 sq. mm, air-cavity laminate package and is ideal for use in tactical military communications, LMR, and wireless (public safety) markets. A gold-plated copper heat sink is attached to the bottom side of the laminate substrate. The package can be accessed from the top or the bottom allowing for “live bug” or “dead bug” mounting. Click here to view specs.

Ultra-Low Power Miniature OCXO from 8 to 150 MHz

The OCXO3307C from Dynamic Engineers are low power high stability oven-controlled crystal oscillators (OCXO) that operate from 8 to 150 MHz. This series offers wide temperature operation from -40°C to +85°C with an outstanding frequency stability of ±3 ppb and low phase noise of -173 dBc/Hz at 100 MHz, all with very fast warm-up time of 60s and less than 0.18 W power dissipation at +25°C. These OCXOs are an ideal clock reference for UHF synthesizers, SATCOM systems, and portable microwave applications, where reliability, low phase noise and low power consumption are important in the operating environment. Click here to view specs.

1.0mm (W) Female Connectors up to 110 GHz

The 24359-001J from Southwest Microwave are 1.0 mm (W) female connectors that operate mode-free up to 110 GHz. They are available as field-replaceable two-hole flange (.390 L) mount connectors. These connectors have a low VSWR of 1.25:1, a low insertion loss of under 0.6 dB and low RF leakage of less than 100 dB. They operate over a temperature range of -55 to 165-degree celcius. Click here to view specs.

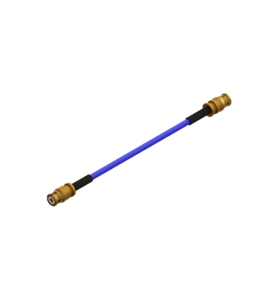

SMP Female Cable Assembly Operates up to 40 GHz

The 7012-0796 from SV Microwave is a SMP Female to SMP Female Cable Assembly with a .047 Cable, operating up to 40 GHz. It has an insertion loss of under 1.8 dB and shielding effectiveness of -65 dB from 3 to 26.5 GHz. This cable assembly is designed to accommodate both radial and axial misalignment. It is ideal for SATCOM, aerospace, military and telecom applications. The SMP connectors conform to DSCC 94007, 94008 and MIL-STD-348 standards. Click here to view specs.

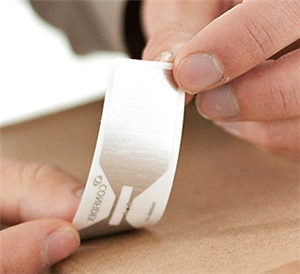

Single Use UHF RFID Tag for Non-metallic Surfaces

The Confidex Casey from Confidex Ltd is an EPC Global Class1 Gen2 passive UHF RFID tag that operates from 860 to 960 MHz. This single-use label is designed specially for applications in which the RFID label is placed close to high dielectric materials. It has a read range of up to 6.5 m (EU) & 6 m (US) on cardboard and up to 8.5 m (EU) & 9 m (US) on plastic. The tag measuring 92 x 24 x 0.2 mm is ideal for supply chain & logistics case level tracking and plastic or corrugated cardboard case identification applications. The Confidex Casey label can also be attached to glass and making it ideal for item-level work-in-process monitoring applications. Click here to view specs.

10-port Base Station Antenna from 1695-2690 MHz, 3550-3700 MHz and 5150-5925 MHz

The 84010564 from Kathrein is a 10-port Base Station Antenna that operates from 1695-2690 MHz, 3550-3700 MHz and 5150-5925 MHz. It delivers a gain of up to 14.6 dBi and can handle an input power of under 150 watts. The antenna measures 610 x 377 x 169 mm, is available with 4.3-10 female connectors. Click here to view specs.

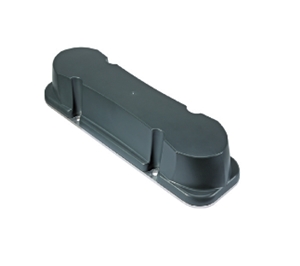

5-port Railway Rooftop Antenna for Cellular and WiFi Applications

The SENCITY Rail MIMO Antenna from HUBER+SUHNER is a 5-port railway rooftop antenna for 2G/3G/4G cellular and WiFi 2.4/5 GHz bands. It delivers a gain from 4 to 9 dBi (depending on the frequency range) and can handle an input power of up to 130 watts. This antenna meets the EN 50155 railway standards, is fire retardant and works on non-metallic surfaces. It is protected against high voltage and high currents; has a common mounting scheme which allows for easy antenna upgrade and is also embedded with GPS-LNA. The antenna measuring 81.6 x 102.5 x 352.5 mm, operates over a temperature range of -40 and 85°C and is fit for the harsh railway environment. Click here to view specs.

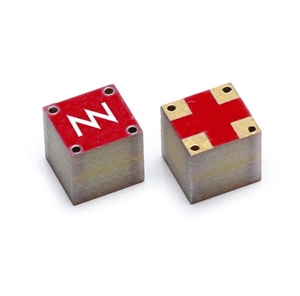

GSM, UMTS, LTE Antenna Booster for Wireless Devices

The FR01-S4-250 from Fractus Antennas is a multi-band chip antenna that covers the GSM, UMTS and LTE Bands (698 - 798 MHz, 824 - 960 MHz and 1710 - 2690 MHz). It delivers a gain of up to 3.6 dBi with an efficiency of 70%. This device is built on a glass epoxy substrate measuring 5 x 5 x 5 mm and is ideal for wireless devices (mobile phones). This single chip antenna can be used across the whole band - it is a standard product, no customizations are required. Click here to view specs.

2.4 GHz Wi-Fi / BT / LTE Co-Existence BAW Filter

The QPQ1907 from Qorvo is a 2.4 GHz Wi-Fi/BT/LTE Co-Existence BAW Band-Pass Filter. It has extremely steep skirts, simultaneously exhibiting low loss in the Wi-Fi band and high rejection near and in the 2.6 GHz bands. The filter can handle an input power of up to 28 dBm and operates over an extended temperature range from -20 to 95 degree Celcius. The QPQ1907 is available in a 1.4 x 1.2 x 0.915 mm package and is ideal for IoT, Wireless Routers, Distributed or Mesh Wi-Fi and IEEE 802.11b/g/n/ac/ax WLAN Applications. Click here to view specs.

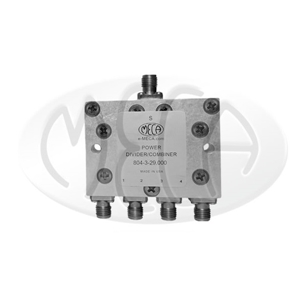

30 W, 4-Way Power Divider from 18 to 40 GHz

The 804-3-29.000 from MECA is a 4-way power divider that operates from 18 to 40 GHz. It can handle up to 30 watts of power, has an insertion loss of under 2.6 dB and isolation over 13 dB. The power divider is available in a module with 2.92mm Female connectors. Click here to view specs.

16-Channel Programmable Attenuator System from 5 to 2150 MHz

The 75PA-113-XX from JFW Industries is a line of 75 Ohm Ethernet-Controlled programmable RF Attenuation Systems that operate from 5 to 2150 MHz. They can be configured to have up to 16 sets of attenuators. Each attenuator can be programmed to have an attenuation of up to 95 dB with 1 dB steps and can handle up to 23 dBm of input power. The 75PA-113-XX has a switching speed of 4 microseconds and requires a supply of 100/240 V AC to operate. The attenuators are available in 2RU high 19 inch rack mount enclosure with BNC female or F female 75 Ohm RF connectors. Click here to view specs.

SPDT RF Switch from DC to 18 GHz

The MSP2TA-18D+ from Mini Circuits is an absorptive SPDT RF switch that operates from DC to 18 GHz. It can handle up to 20 W of input power, has a low insertion loss of 0.3 dB and isolation of 70 dB at 18 GHz. The switch has a switching speed of 20 milliseconds. It is available in a module and is ideal for automated test equipment (ATE) and redundancy switching for microwave radio applications. This fail-safe switch is designed in break-before-make configuration and operates from a 24 V dc supply. Break-before-make means that it is configured to break (open) the first set of contacts before engaging (closing) the new contacts. This prevents the momentary connection of the old and new signal paths. Click here to view specs.

5-Bit Digital Attenuator from 2 to 18 GHz

The CMD279C3 is a positive controlled, wideband GaAs MMIC 5-bit digital attenuator that operates from 2 to 18 GHz (S, C, X, Ku Band). Each bit of the attenuator is controlled by a single voltage of either 0 V or +5 V. The attenuator bit values are 0.5 (LSB), 1, 2, 4, and 8 dB, for a total attenuation of 15.5 dB with an attenuation accuracy of 0.2 dB step error. It has a low insertion loss of 3.5 dB at 9 GHz and can handle an input power of up to 27 dBm. The CMD279C3 is available in a 3 x 3mm QFN surface mount package and is matched to 50 ohms which eliminate the need for RF port matching. Click here to view specs.

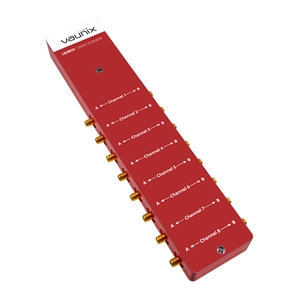

8-Channel Digital Attenuator from 0.2 to 6 GHz

The LDA-906V-8 from Vaunix is a highly accurate, bidirectional, 8-Channel Digital Attenuator that operates from 0.2 to 6 GHz. It has a step size of 0.1 dB and typical accuracy <0.25 dB over a 90 dB of control range. This lab brick can handle up to 26 dBm of input power. This Digital Attenuator a portable USB powered device that is sized to fit into a single rack unit for ATE applications. It can be used with WiMAX, 3G, 4G, 5G, LTE, DVB and microwave radio fading simulators as well as in engineering and production test labs. This attenuator module has a native USB HID interface to avoid the difficulties inherent in using older serial or IEEE-488 interfaces implemented over USB. As a result, Lab Brick users can get to work faster without having to install kernel level drivers, and Lab Brick devices can be easily used on any system that supports USB HID devices, including low cost embedded computers using Linux or similar operating systems. The attenuators are easily programmable ...Click here to view specs.

Convection Cooled Fixed Attenuators from DC to 2.4 GHz

The RFA1300 Series from Res-Net Microwave are convection cooled fixed attenuators that operate from DC to 2.4 GHz. They can handle an input power of up to 1300 Watts (CW) and are available in attenuation configurations from 3 to 40 dB (3, 10, and 30 dB). The attenuators have a VSWR less than 1.20:1 and are matched to 50 ohms. They are available in a module that measures 15.08 x 6.63 x 6.13 inches with type-N and 7/16 DIN male/female connectors. Click here to view specs.

USB & Ethernet Programmable RF Attenuator from 0.005 to 6 GHz

The AD-USB4AR36G95 from Adaura Technologies is a 4 channel, digital programmable attenuator that operates from 0.005 to 6 GHz. The attenuator has an attenuation range from 0 to 95 dB with a step size of 0.25 dB. It provides more than 100 dB of chain to chain isolation and can handle an input power of up to 28 dBm. The AD-USB4AR36G95 is USB and Ethernet controlled. The addition of Ethernet allows EASY implementation into the most modern of test setups by allowing network control via HTTP web interface or direct Telnet while the USB port powers the device and allows for serial communication. The four channels can be controlled independently and powered via a single USB port. It is available in a compact module that measures 181.20 x 89.30 x 25.70 mm with SMA female ports and is ideal for cellular, IoT, MIMO, and engineering development and manufacturing test. Click here to view specs.

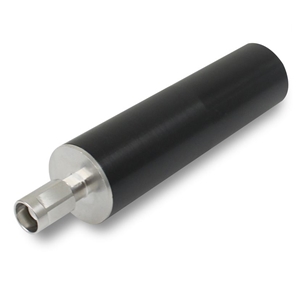

0.35 to 2.7 GHz Low PIM Cable Terminations for Small Cell Applications

The TK-200 Series from Microlab are Low PIM Cable Terminations that operate from 0.35 to 2.7 GHz. These terminations are matched to 50 ohms and can handle an average power up to 10 watts and peak power up to 5 KW. The terminations have PIM values as low as -161 dBc. They are available with a 4.3/10, 7/16 DIN, NEX10 and 2.2-5 connector interfaces. The TK-200 Series is ideal for Small Cell wireless applications and can be used with Microlab’s 2x2, 3x3, and 4x4 hybrid combiners to provide superior low PIM performance. The units are black anodized for outdoor applications and meet 30 days ASTM B117 Salt Fog Testing when used with a weather boot or connector wrap. Click here to view specs.

4-Bit Silicon Digital Attenuator from 9 kHz to 40 GHz

The ADRF5721 from Analog Devices is a 4-Bit Silicon Digital Attenuator that operates from 9 kHz to 40 GHz. This attenuator has a 30 dB range with a step size of 2 dB. It has an insertion loss of less than 3.4 dB, and can handle up to 26 dBm of average power and 30 dBm of peak power. The ADRF5721 requires a dual supply voltage of +3.3 V and -3.3 V. It features a serial peripheral interface (SPI), parallel mode control, and CMOS compatible logic controls. The attenuator is available in a 16-terminal, 2.5 x 2.5 mm, RoHS compliant, land grid array (LGA) package and operates from -40°C to +105°C. Click here to view specs.

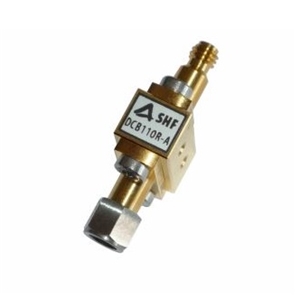

Broadband DC Block from DC to 110 GHz

The SHF DCB110R from SHF Communication Technologies is a DC Block with 1.00 mm connectors that operates from DC to 110 GHz. It has an insertion loss of less than 1.5 dB and can handle up to 30 watts of input power with a voltage rating of 20 V. The SHF DCB110R measures 17 x 7 x 8 mm and is ideal for SATCOM, antenna measurements, data transmission, and optical communications. Click here to view specs.

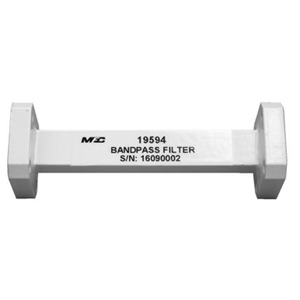

Waveguide Band Pass Filter from 35.7 to 40.3 GHz

The 19594 from Microwave Filter Company is a Ka-band Band Pass Filter with a passband from 35.7 to 40.3 GHz. The filter has an insertion loss of 1 dB and more than 60 dB of rejection @ 33.5 & 44.7 GHz. It is available in a package that measures 2.5 x 0.75 x 0.75 inches with a WR28 waveguide interface. This bandpass filter has been developed for airborne radiometer applications. Click here to view specs.
