10 W GaN Power Amplifier from 4.5 to 7.0 GHz

The QPA1019 from Qorvo is a high-power, C-band GaN Amplifier that operates from 4.5 to 7.0 GHz. It provides more than 10 watts of saturated output power with a gain of 19 dB and 39% PAE. The amplifier is packaged in a plastic overmold QFN with a Cu paddle offering easy handling with good thermal properties. As a result of which, it has bias flexibility allowing the user to vary the voltage to achieve optimum system performance while maintaining high reliability. The amplifier is matched to 50 ohms and has integrated DC blocking caps on both I/O ports. It is ideal for radar and satellite communication systems. Click here to view specs.

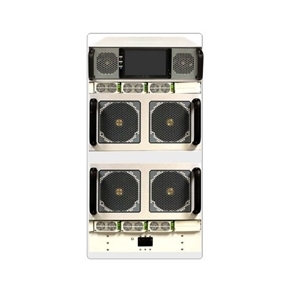

8 kW Solid State High Power Amplifier from 9 to 10 GHz

The 2221 is a Solid State Broadband High Power Amplifier that operates from 9 to 10 GHz. This amplifier comprises of multi-drawer integrated subsystems that produce more than 8kW of peak pulsed output power with a gain of 70 dB. The amplifier subsystem features multiple high power GaN devices that provide wide frequency response, high gain, high peak power capability, and low distortions. Click here to view specs.

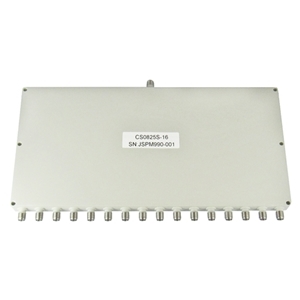

16-Way Power Divider from 0.8 to 2.5 GHz

The CS0825S-16 from Centric RF is a 16-Way Power Divider that operates from 0.8 to 2.5 GHz. It has an isolation of over 18 dB and a VSWR of 1.5:1. This Wilkinson power divider is available in a module with SMA connectors. Click here to view specs.

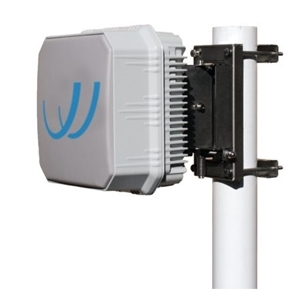

3 Gbps Millimeter Wave Radio from 71 to 86 GHz

The Flex4G-LITE (ANSI) from BridgeWave is an outdoor microwave backhaul solution that operates from 71 to 86 GHz. It delivers up to 3 Gbps full-duplex data throughput using 750 MHz bandwidth and 64QAM modulation. This compact radio system has carrier-grade Ethernet switch functionality, hitless adaptive rate modulation, and low power consumption. Click here to view specs.

100 W Solid State Power Amplifier from 4 kHz to 400 MHz

The 100A400AM20 from AR RF/Microwave Instrumentation is a solid-state, self-contained, air-cooled, broadband amplifier that operates from 4 kHz to 400 MHz. The device is designed for applications such as MIL-STD 461 and the CS114 test standard along with any application where instantaneous bandwidth, high gain, and linearity are required. It provides minimum 100 watts of RF power with a gain of over 50 dB. The amplifier can be controlled from a front panel allowing the operator to conveniently set the desired output level. It is available in a compact contemporary cabinet for benchtop use or with the cabinet removed for rack mounting. Click here to view specs.

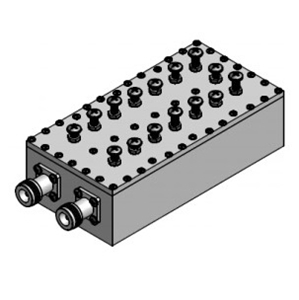

WiFi Band Pass Filter from 2400 to 2485 MHz

The 511-2400M-2485M-N from InnowaveRF is a 2.4 GHz WiFi Band Pass Filter with a passband of 2400 to 2485 MHz. The filter has an insertion loss of 1.5 dB and more than 45 dB of rejection @ 2350 & 2540 MHz. It can handle up to 50 watts of power and is available in a connectorized module. This cavity filter is ideal for wireless LAN and WiFi access point applications. Click here to view specs.

23.5 MHz to 6 GHz Fractional/Integer-N Synthesizer/VCO

The MAX2871 from Maxim Integrated is a phase-locked loop (PLL) with integrated voltage controlled oscillators (VCOs) that operates in both integer-N and fractional-N modes. It is capable of synthesizing frequencies from 23.5 MHz to 6.0 GHz while maintaining superior phase noise and spurious performance, when combined with an external reference oscillator and loop filter. Click here to view specs.

GaAs Double-Balanced Mixer from 18 to 50 GHz

The MM1-1850S from Marki Microwave is a passive GaAs double balanced MMIC mixer with an RF/LO frequency from 18 to 50 GHz and IF frequency from DC to 20 GHz. The mixer has excellent conversion loss, isolation and spurious performance across its broad bandwidth. It is available as a wire bondable chip that measures 0.058" x 0.046" x 0.004" or as a module with SMA/1.85mm connectors. Like most Marki Microwave products this model too has a non-linear software model available with the Marki PDK for Microwave office. Click here to view specs.

2.92mm Coaxial Termination from DC to 40 GHz

The T3FK from KRYTAR is a Coaxial Termination that operates from DC to 40 GHz. This 2.92mm female termination can handle up to 0.5 watts of power and has a VSWR of less than 1.20:1. The termination measures 0.84 x 0.36 inches and can operate from -65 to 125 degrees C. Click here to view specs.

USB Controlled SPDT Switch from 0.5 to 43.5 GHz

The RFSP2TA5M43GUSB from RF-Lambda is a USB controlled absorptive coaxial SPDT Switch that operates from 0.5 to 43.5 GHz. It can handle up to 23 dBm of CW power and has a switching speed of below 200 ms. The switch has an insertion loss of under 5.2 dB and an isolation of over 45 dB. It is available in a module with 2.92 mm female connectors and is ideal for automated test, aerospace and military applications. Click here to view specs.

SPDT Switch from 1 to 6 GHz

The SKY13585-679LF from Skyworks is a SPDT switch that operates from 1 to 6 GHz. It has a low insertion loss of 0.5 dB and a high isolation of 38 dB. This switch can handle a power of 31 dBm and requires a supply voltage of 3 to 5 Volts. It has integrated DC blocking capacitors, so no external DC blocking capacitors are required. This switch is available in a 6-pin MLPD package that measures 1 x 1 x 0.32 mm and is ideal for WLAN repeaters, ISM band radios and connectivity modules. Click here to view specs.

20 dB Directional Coupler from 6 to 60 GHz

The CS20-55-435/4 from Pulsar Microwave is a Directional Coupler that operates from 6 to 60 GHz. It has a coupling value of 20 dB and can handle up to 20 watts of power. The coupler has an insertion loss of under 1.8 dB and directivity of more than 7 dB. It is available in a module that measures 1.06 x 0.63 x 0.38 inches with 1.85 mm connectors. Click here to view specs.

900 MHz UHF RFID Reader Module

The 716007 from GAO RFID is an UHF RFID reader module that can be used with read/write RFID tags compliant with ISO18000-6B and EPC Class 1 Gen 2 ISO18000-6C protocols. It operates from 902 to 928 MHz and provides fast tag read/write operation with a high identification rate. The module supports various EPC lengths - 16, 32, 48, 64, 80 or 96 bits. This reader provides an output power of up to 30 dbm (adjustable) while operating over a single 5 V DC power supply. It is available in a package that measures 62 x 45 x 9 mm and is ideal for logistics, access control, attendance systems, anti-counterfeit and industrial production process control systems. Click here to view specs.

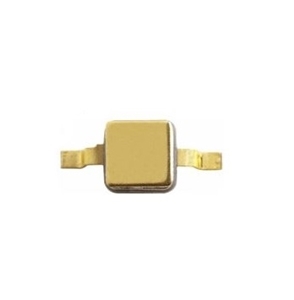

InGaP MMIC Cascadable Amplifier from DC to 14 GHz

The TDGB014 from Teledyne e2v HiRel is a cascadable broadband InGaP MMIC amplifier that operates from DC to 14 GHz. The amplifier is available in gain configurations of 13.6 dB, 16.5 dB, 18.4 dB and has a noise figure of 5.5 dB. It is available in a 2-lead, hermetic, 6.6 x 3.6 mm ceramic package and is ideal for linear & saturated amplifier applications, VSAT, military and test equipment applications. Click here to view specs.

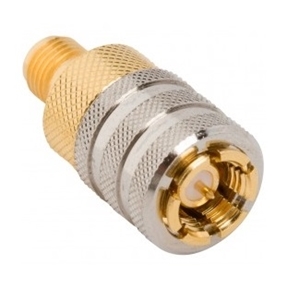

Quick Connect, SMA Straight Jack to Plug Adapter up to 18 GHz

The 901-10565 from AmphenolRF is a Quick Connect, SMA Straight Jack to Plug Adapter that operates up to 18 GHz. This 50 Ohm adapter has an insertion loss of under 0.15 dB and a VSWR of 1.14:1. It can be used for more than 500 mating cycles and operates over a temperature range of -65 to 165 degree celcius. Click here to view specs.

10 MHz to 6 GHz (Optional to 24 GHz) Real-Time Phase Noise Analyzer

The HA7062C from Holzworth is a real time fully integrated phase noise analysis system that operates from 10 MHz to 26 GHz. It utilizes the same core engine from the HA7402C analyzer along with a pair of high performance RF Synthesizers as the test signal LOs. The stability of the agile synthesizers operating as LO sources for the high speed, cross-correlation core enables an extremely reliable phase noise analyzer. Click here to view specs.

USB Vector Signal Generator up to 6.1 GHz

The VSG6G1C from Triarchy Technologies is a USB Vector Signal Generator that operates from 1 MHz to 6.1 GHz. With output levels up to 10 dBm, signals can be delivered in CW, sweeping, and hopping modes. The unit has a built-in pulse generator for creating pulse modulation and an arbitrary function generator to generate a wide range of modulation modes, such as: I&Q modulation, AM, PM, FM analog, FSK, ASK, PSK, MSK, GMSK, SFSK, as well as digital modulation schemes such as QPSK, 8PSK, QAM, and phase modulation types such as CDMA, TMDA, GSM and more. Click here to view specs.

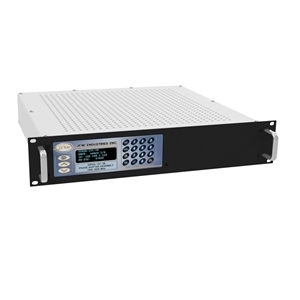

Ethernet Controlled Phase Shifter Assembly from 1.5 to 3 GHz

The 50PSA-101-XX series from JFW Industries are Ethernet controlled, solid-state programmable phase shifters that operate from 1.5 to 3 GHz. The series is available with up to 8 individually controlled phase shifters with a range of 0 - 358.6° by 1.4° steps. Each phase shifter can be assigned a different center frequency. They have an insertion loss of under 10 dB and can handle an input power of up to 25 dBm. The phase shifters are available in 2RU high 19 inch rack mount enclosure with SMA or N-type female connectors. Click here to view specs.

Benchtop RF Shield Box from 20 MHz to 6 GHz

The HDRF-S860 from RF Electronics is a RF Shielded Test Enclosure that operates from 20 MHz to 6 GHz. The enclosure has a thick RF absorbing foam that provides an isolation of more than 120 dB @ 3 GHz. It has shielded power filters which can be used to power devices placed inside the enclosure while blocking all wireless signals. The HDRF-D1260 has a number of user friendly I/O connection options that include HDMI, RJ45, USB, DB9, VGA, DB25 and AC/DC. The shielded box measures 210 x 190 x 425 mm and is ideal for 802.11 a/b/g/n/ac, Bluetooth, RFID and 3G Device Testing. Click here to view specs.
