3.4 to 3.6 GHz Hybrid GaN PA for 5G Massive MIMO Applications

The RTH343610X is a GaN hybrid power amplifier module that operates from 3400 to 3600 MHz. It has been designed for 5G Massive MIMO systems, small cells, base station and low power remote radio head applications. This fully matched 2-staged Doherty GaN power amplifier module can deliver up to 10 Watts of power with a gain of 28.5 dB and an efficiency of 42%. It is available in a 15.8 x 10.8 x 4.2 mm surface mount package which provides excellent thermal dissipation. Click here to view specs.

2 W GaN Amplifier Die from 2 to 20 GHz

The QPA2213D is a wide band GaN driver amplifier MMIC that operates from 2 to 20 GHz. This amplifier provides over 2 watts of saturated power with a gain of 16 dB and PAE of 23%. It has DC blocking capacitors on both RF ports, which are matched to 50 ohms. The amplifier is ideal for both commercial and military wide band systems. This amplifier has been fabricated on Qorvo’s production 0.15 um GaN on SiC process (QGaN15) and is available as a die that measures 2.75 x 2.75 x 0.10 mm. Click here to view specs.

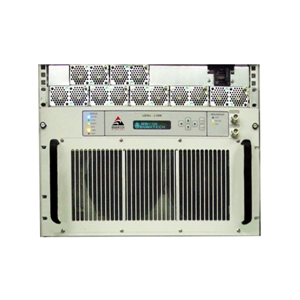

2500 W S-Band Solid State Pulse Amplifier

The APRA-S2500A from Advantech Wireless is an S-Band GaN-based Solid State Pulse Amplifier that operates from 2.7 to 2.9 GHz. It provides an output of more than 2500 W @ 10% duty cycle over the full band and operating temperature range. The amplifier has a fast pulse rise/fall times of under 100 ns. The in-built duty cycle monitor and pulse width monitor ensures trouble-free operation. It is available in a 3 RU / 19&rdquo rackmount chassis and is ideal for radar, critical infrastructure, government and military applications. Click here to view specs.

4-Way Power Divider from 4 to 45 GHz

The PS4-54-452/11S from Pulsar Microwave is a 4-Way power divider that operates from 4 to 45 GHz. It can handle up to 10 watts of power with an isolation of over 10 dB and insertion loss of under 5 dB. The power divider has an amplitude balance of 2 dB and phase balance of 15 degrees. It is available in a module that measures 2.2 x 1.75 x 0.40 inches with 2.92 mm connectors. Click here to view specs.

High Directivity Directional Coupler from 1 to 500 MHz

The KBK-703S from Synergy Microwave is a directional coupler that operates from 1 to 500 MHz. It provides 11.5 dB of coupling with a directivity of more than 20 dB and a low insertion loss of under 1 dB. The coupler is matched to 50 ohms and can handle an input power of up to 1 watt. It is available in a connectorized module. Click here to view specs.

C-Band Super Low Noise Amplifier with Fault Detection

The APT3-05400590-1010-LS-D4-FAC is a Low Noise amplifier that operates from 5.4 to 5.9 GHz. It provides a P1dB of 12 dBm and a gain of 28 dB with a noise figure of less than 0.9 dB. An internal limiter at the input provides protection of up to 2W CW of RF input power over the full band. There is provision for a Fault Alarm signal via one of the pins on the external MS3112E8-4P connector (used for power) that is triggered by a pre-defined change in current draw. It is available in a module with SMA female connectors and is ideal for receiver front end, radar, Satcom and test equipment applications. Click here to view specs.

26 to 62 GHz Low Noise Amplifier

The LNF-LNR26_62A is an ultra-low noise amplifier that operates from 26 to 62 GHz. It provides a gain of 33 dB with a noise figure of 2.10 dB. The LNA is available in a coaxial module that measures 17.80 x 15.15 x 6.80 mm with industry standard 1.85 mm and Nano-D connectors. Click here to view specs.

Ethernet-Controlled programmable RF Attenuation System from 100 MHz to 40 GHz

The 50PA-1019-XX from JFW Industries is a line of Ethernet-Controlled programmable RF Attenuation Systems that operate from 100 MHz to 40 GHz. They can be configured to have up to 16 sets of attenuators. Each attenuator can be programmed to have an attenuation of up to 62 dB with 1 dB steps and can handle up to 25 dBm of input power. The 50PA-1019-XX has a switching speed of 1 microsecond and requires a supply of 100/240 V AC to operate. It is available in a package that can be placed in to a 19 inch rack with 2.92 mm female connector. Click here to view specs.

5 GHz 802.11n/ac Front-End Module for Handsets and Tablets

The SKY85716-11 from Skyworks is a highly integrated front-end module (FEM) for 5 GHz 802.11n/ac applications. It can be used in WiFi-enabled handsets, tablets, and mobile/portable systems and System-in-Package (SIP) modules for embedded applications. The module consists of a SPDT switch, transmit/receive (T/R) switch, a low-noise amplifier with bypass, and a power amplifier. It has an integrated positive slope logarithmic power detector and its output reverts to high impedance when not in use. This FEM is available in a 16-pin Quad Flat No-Lead (QFN) package that measures 2.3 x 2.3 x 0.33 mm. Click here to view specs.

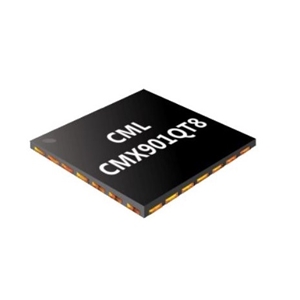

2.5 W RF Power Amplifier from 130 to 950 MHz

The CMX901 is a three stage RF power amplifier that operates from 130 to 950 MHz. It provides a gain of 40 dB and an output power of 2.5 W @ 160 MHz, while operating over a single supply of 2.5 to 6 V. The CMX901 is available in a 5 x 5 mm low thermal resistance 28-pin WQFN package and is ideal for wireless data communications, RFID readers/writers and wireless sensor networks applications. Click here to view specs.

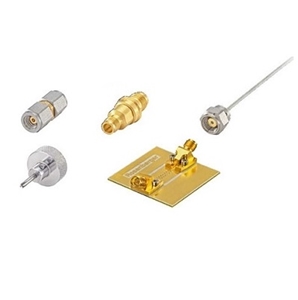

Precision Coaxial 1.35 mm Connectors up to 90 GHz

The RPC-1.35 connector series (E connectors) can operate up to 90 GHz. These connectors have a highly robust mechanical design that can handle a minimum of 3000 mating cycles and have been designed for high-performance RF measurements in the E-Band. The product range covers semi-rigid and flexible cable assemblies, PCB connectors, test PCBs, cable connectors, in-series and inter-series adaptors, test port, floating and waveguide-to-coaxial adaptors as well as gauge and calibration kits. Click here to view specs.

High Power SP4T RF Switch from 0.05 to 6 GHz

The BGS14MPA9 from Infineon is a SP4T switch optimized for 2G / 3G / 4G and 5G cellular applications up to 6 GHz. It has an insertion loss of 0.2 dB and provides an isolation of 50 dB @ 1 GHz. The switch can handle an input power of up to 38 dBm and is perfect for LTE 4G applications, such as Uplink-Carrier Aggregation, High Power User Equipment (HPUE Class 2) and 5G sub 6 GHz. It is available in a compact 9-pin package that measures 1.1 x 1.1 mm and can be applied as a 2G / 3G post PA RF Switch and high-band antenna switch for LTE-U / LAA or LTE band 42 and 43. Click here to view specs.

60 W Solid-State Amplifier from 0.7 to 18 GHz

The 60/40S1G18B is a portable, self-contained, air-cooled, dual-band, broadband, solid-state amplifier that operates from 0.7 to 18 GHz. The amplifier provides an output power of more than 40 watts from 0.7 to 6 GHz and more than 60 watts from 6 to 18 GHz. It has been designed for applications where instantaneous bandwidth, high gain and linearity are required. It has a Digital Control Panel (DCP) which provides both local and remote control of the amplifier. The digital display on the front panel indicates control status and reports of internal amplifier status. All amplifier control functions and status indications are available remotely in GPIB/IEEE-488 format, RS-232 hardwire and fiber optic, USB, and Ethernet. This model is designed to have low spurious signals, exhibit very good linearity, and is extremely load tolerant which enables it to be used in many RF applications such as RF susceptibility testing, antenna/component testing, and communication technology testing. It can...Click here to view specs.

RF Shielded Test Enclosure from 20 MHz to 6 GHz

The HDRF-S1260 from RF Electronics is a RF Shielded Test Enclosure that operates from 20 MHz to 6 GHz. This shielded box has a thick RF absorbing foam that provides an isolation of more than 120 dB @ 3 GHz. It has shielded power filters which can be used to power devices placed inside the enclosure while blocking all wireless signals. The HDRF-S1260 has a number of user friendly I/O connection options that include HDMI, RJ45, USB, DB9, VGA, DB25 and AC/DC. The shielded box measures 290 x 217 x 360 mm and is ideal for 802.11 a/b/g/n/ac, Bluetooth, RFID and 3G Device Testing. Click here to view specs.

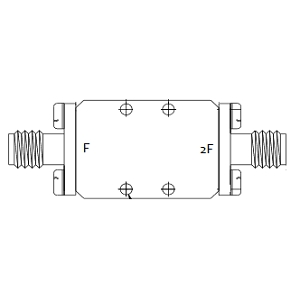

Frequency Doubler with 3 to 10 GHz Output

The D1550LL is a frequency doubler with an input frequency of 1.5 to 5 GHz and output frequency from 3 to 10 GHz. It provides a conversion loss of 10.5 dB when driven by an input signal of 10 to 13 dBm. The D1550LL is available as a connectorized module with SMA female connectors. Click here to view specs.

4x4 MIMO 2.4/5 GHz Wi-Fi Antenna

The GL4X4MIMO-SF from PCTEL is a dual band 802.11ac/p MIMO antenna that can help boost data rates for utility networks, Intelligent Transportation Systems (ITS), and other Industrial IoT (IIoT) applications. It delivers a gain of up to 4 dBi and can handle an input power of 25 watts. This 4-port low-profile antenna supports dual-band 2.4/5 GHz coverage along with PCTEL&rsquos unique high rejection GPS/GLONASS technology for network timing and tracking, all in a single IP67-rated housing. It supports a variety of wireless technologies, including broadband mesh networks, 802.11ac Wi-Fi, and 802.11p DSRC Wireless Access in Vehicular Networks (WAVE) standards for direct vehicle-to-vehicle (V2V) and vehicle-to-infrastructure (V2I) communications. The antenna is designed for both mobile and fixed deployments, enabling smart grids, mobile workforce communications, and advanced automation technologies across a variety of industries. This antenna also supports Dedicated Short Range Comm...Click here to view specs.

16-Port Small Cell Antenna from 1695 to 5925 MHz

The V4SSPP-360S-F from Commscope is a 16-port small cell antenna that operates from 1695-2690 MHz (8 ports), 3300-3800 MHz (4 ports) and 5150-5925 MHz (4 ports). It has a 360 degree horizontal beamwidth and delivers a gain of up to 8.4 dBi. The antenna can handle an input power of up to 300 watts at 50 degree celcius. It is 620 mm in length and has an outer diameter of 305 mm. The antenna has 4.3-10 female connectors. Click here to view specs.
