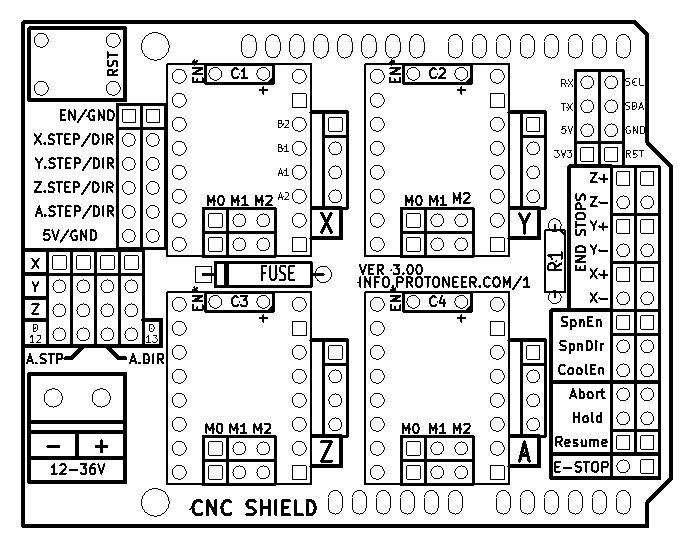

I have a limit switch hooked to the end stop. One wire on the Z+ and one on the Z-. When I jog the z motor and hit the switch it goes not seem to work. If I hook the wires to the estop on the board it works as expected. Any feedback would be very helpful.
I have a limit switch hooked to the end stop. One wire on the Z+ and one on the Z-. When I jog the z motor and hit the switch it goes not seem to work. If I hook the wires to the estop on the board it works as expected. Any feedback would be very helpful.
Hi. Have a look at setting $16 as per the GRBL setup steps : https://github.com/grbl/grbl/wiki/Configuring-Grbl-v0.8
I have limit switches installed. The are working very well for homing but are false tripping when hard limits are turned on. Any suggestions?
Add a Capacitor to each of the end switches lines to get rid of the spikes.
