Raspberry Pi CNC Board / Hat

2015/06/17 8:47 pm / 29 Comments / / Featured

We are happy to announce the next generation of our CNC boards.

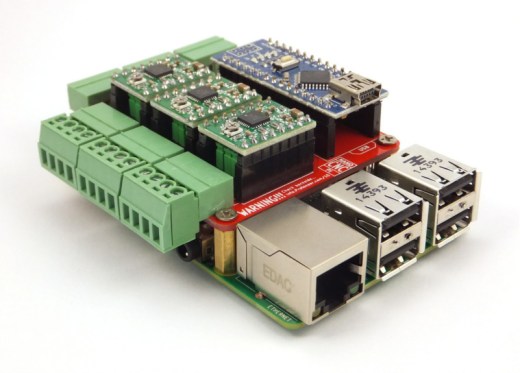

Raspberry-Pi-CNC-Board-1

By combining a real-time CNC system (good old GRBL) and offloading less timely processes to a more powerful processor + operating system we have created a much more flexible but capable solution.

To show some of the possibilities we have created a Web / Browser app to allow users to remotely control their CNC machines. (Welcome to the Internet-Of-Things)

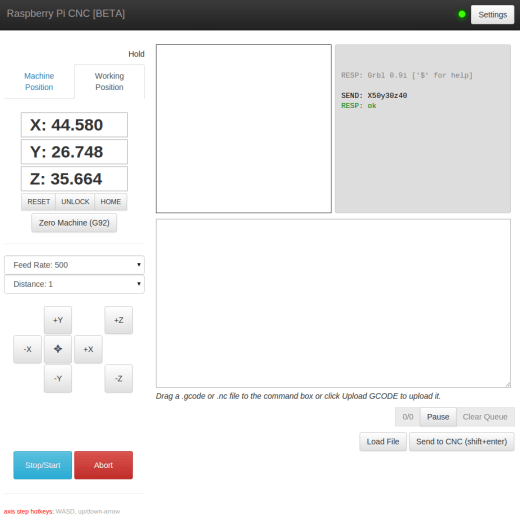

Raspberry-Pi-CNC-User-Interface

The app code also includes a working example on how to expand your ecosystem by taking advantage of what we call the “Command Router” and “Single Command Mode” system. It allows us to add custom commands that can execute a shell command, one command at a time without getting buffered / queued in GRBL.

Custom command examples:

  • Simple – Send Email Notifications / Flash a warning light / Play a warning sound / Switch on a relay.
  • Moderate – Wait for external inputs like temperature, safety switches to clear before moving to the next command.
  • Complex – CNC Clustering, combining CNC machines to form a pipeline of operations like in a moving assembly line.

Extra Links:

Raspberry Pi CNC Board – Gallery:



Related Posts

Zemanta
Posted in: Breakout Board, CNC / Tagged: , ,

29 Thoughts on “Raspberry Pi CNC Board / Hat”

  1. Bryant Bair on 2015/06/17 at 10:44 pm said:

    I’ve been waiting for something just like this. I wish there were a fourth axis (slaved or independent), either on the board or available as a breakout board but I’ll take what I can get.

    Ordered one on Ebay :)

    Reply↓
    • Bertus Kruger on 2015/06/18 at 9:14 pm said:

      Thanks for the feedback. We looked at adding a 4th axis but had some issues finding the right spacers to lift the board above the USB and Ethernet plug. I have a few ideas on how to get around it but will take a bot of time to fine tune. Your order will be shipped ASAP.. :)

      Reply↓
  2. Doug on 2015/06/18 at 12:33 am said:

    Looks great! Is there a way to add a cloned stepper for running 2 steppers on one axis.? Any plans to for external drivers to run bigger (nema34) motors?

    Reply↓
    • Bertus Kruger on 2015/06/18 at 9:17 pm said:

      Thanks… Yes, we are looking into the cloning idea and adding another stepper driver. If we have space left we will add a breakout for external drivers. 😉

      Reply↓

  3. Pingback: Programming hundreds of Arduino Minions in one go | Protoneer.co.nz

  4. daniel on 2015/06/28 at 7:17 pm said:

    could this work with win 10 and Mach3 cnc

    Reply↓
  5. Bob on 2015/08/01 at 9:42 pm said:

    I have order your pi hat and waiting on it, My question is the arduino nano using the code as the arduino cnc shield, if not can I get the source in case I need to replace the nano in the future

    Reply↓
  6. Bob on 2015/08/03 at 2:26 pm said:

    thanx

    Reply↓
  7. Vasken on 2015/08/07 at 6:10 pm said:

    Hey Bertus,

    I’ve ordered and received the CNC hat. It’s really nice!

    I was able to get the Universal Gcode Sender program to run on the RPi, but I’m not able to get it to communicate with the Arduino.

    How do you set it up so that the RPi looks on its GPIO pins for an Arduino instead of a COM port?

    Also, is there a tutorial on how to install and use your web-based solution shown above?

    Thanks,
    Vasken

    Reply↓
  8. Pedro Santos on 2015/08/24 at 1:07 am said:

    Can I use the raspberry pi B?
    I don’t have any raspberry pi 2 B

    Reply↓
  9. Dr. Electronics muah ahahahah on 2015/08/27 at 8:13 pm said:

    Hi, I was looking for this a long time, you use serial port to communicate with arduino, and the spi channel can be used?
    Its for this type of display: http://www.sainsmart.com/raspberry-pi/sainsmart-9-inch-tft-lcd-800-480-touch-screen-display-for-raspberry-pi-2-b-b.html
    this uses spi to control the touch screen.

    best regards
    Electronicarts

    Reply↓
  10. Rich on 2015/09/26 at 2:17 am said:

    Just ordered one of these HATs… looking forward to it. Do you have a link to the correct Molex connectors for the Stepper Ports?

    Reply↓

  11. Pingback: Arduino auf Protoneer CNC Shield auf Raspberry Pi | Motions-Media

  12. Andreas Pettersson on 2015/10/17 at 8:49 am said:

    Im curious how you made the serial connection between the RPi and the Nano, using the nanos pins instead of the usb connector. Im thinking of connecting a nano to a STM32f7, making basicly a hat/shield or adapting an existing board to do that.

    would be great with some insight. I find that making a UI on stm32f7 and attaching a grbl arduino nano to that would be a good compact solution.. if i could figure out how i would access the pins (thats why im tinkering with the idea of taking an existing arduino shield)

    Reply↓
  13. Matthias on 2015/10/26 at 7:14 am said:

    do you have any other download source for the Raspberry Pi bCNC Image as it is not possible to download it via DropBox any more.
    That would be very nice!

    Reply↓
    • Bertus Kruger on 2015/10/28 at 5:19 am said:

      Thanks for the feedback. Drop-box tend to disable the download if the daily download bandwidth has been exceeded. I am looking for more similar services but have not found any viable ones yet. Does anyone have suggestions on this?

      Reply↓
